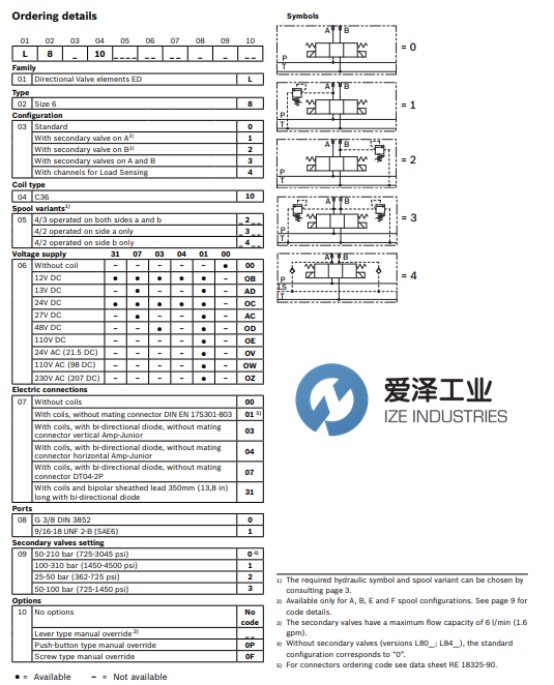

REXROTH閥L8010B201OC0100規格描述
L=Directional Valve elements ED |
8=Size 6 |
0=Standard |
10=C36 |
B201=4/3 operated on both sides a and b |
OC=24V DC |
01=With coils, without mating connector DIN EN 175301-803 |
0=G 3/8 DIN 3852 |
0=50-210 bar (725-3045 psi) |

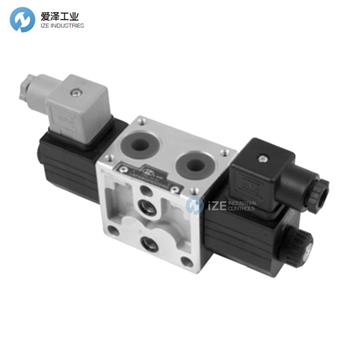

REXROTH閥L8系列產品介紹及介紹
General specifi cations
Valve elements with solenoid operated directional spool.
Control spools operated by solenoids with removable coils.
In the de-energized condition, the control spool is held in the central position by return springs.
Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifi er (RAC).
Manual override (push-button or screw type) available as option.
Size 6
Series 00
Maximum operating pressure 310 bar (4500 psi)
Maximum fl ow 30 l/min (7.9 gpm)
Port connections G 3/8 - SAE6
一般規格
帶電磁控制方向閥芯的閥芯。
由帶可拆卸線圈的螺線管操作的控制線軸。
在斷電狀態下,控制閥芯由復位彈簧保持在中間位置。
用于直流線圈的濕銷管,帶有用于機械超控的推桿; 鍍鎳表面。
線圈可繞管360°旋轉; 它們可以通過帶有整流器 (RAC) 的特殊連接器由交流電供電。
手動操作(按鈕式或螺絲式)可作為選項提供。
尺寸 6
00系列
最大工作壓力 310 bar (4500 psi)
最大流量 30 l/min (7.9 gpm)
端口連接 G 3/8 - SAE6
REXROTH閥其他常用型號:
REXROTH L8010B201OC0100
REXROTH R933000047
REXROTH R933002913
REXROTH R933000048
REXROTH R933000045
REXROTH R933000051
REXROTH R933000049
REXROTH OIL CONTROL Valve block NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥L8010B201OC0100的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
