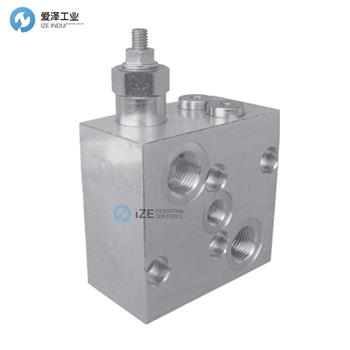

REXROTH OIL CONTROL閥VBSO-SE-FA-30系列技術參數
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Max. flow | 60 l/min. (16 gpm) |
Flangeable on SAUER-DANFOSS orbital motors OMP-OMR series. | |
Relief setting: at least 1.3 times the highest expected load. In addition,both the relief setting and the pilot ratio must be determined also in order to achieve building-up of pilot pressure in Pil high enough to release the brake prior to any valve opening from C2 to V2. | |
Weight | 1.13 kg (2.5 lbs) |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Flange seal kit | E00000000000058 (R930060588) |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
REXROTH OIL CONTROL閥VBSO-SE-FA-30系列技術尺寸

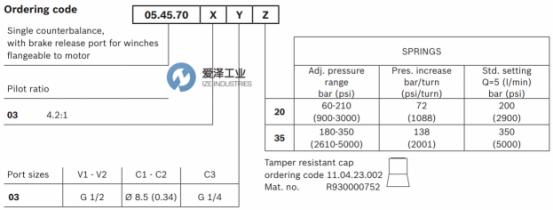

REXROTH OIL CONTROL閥VBSO-SE-FA-30系列選型
REXROTH OIL CONTROL閥VBSO-SE-FA-30系列其他常用型號：
REXROTH OIL CONTROL 05457003032000A R930002090
REXROTH OIL CONTROL 05457003033500A R930002091
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥05457003033500A R930002091的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥05457003033500A R930002091更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥05457003033500A R930002091技術參數
