REXROTH OIL CONTROL閥VEI-16-021-NA系列技術規格
Technical data | |
General | |
Weight | 0.35 kg (0.77 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage: | 20 drops/min. for X= 02,06 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm(NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Special cavity | 021-E see 18325-75 |
Seal kit for X=02,06 | code RG21E201052010 |
Seal kit for X=04,32 | code RG21E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |

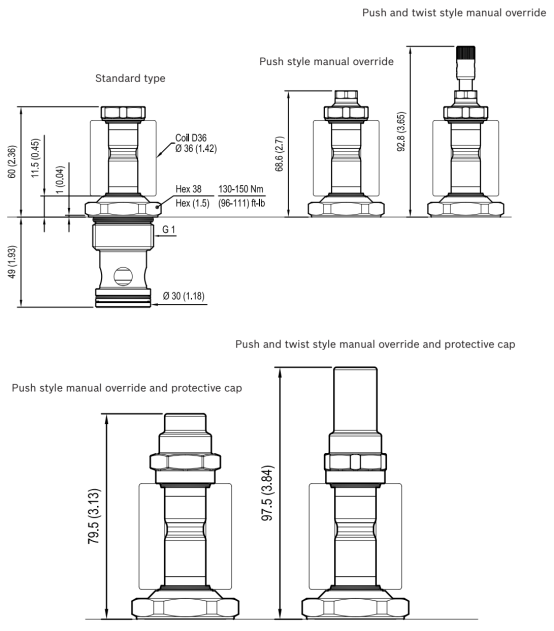

REXROTH OIL CONTROL閥VEI-16-021-NA系列技術尺寸

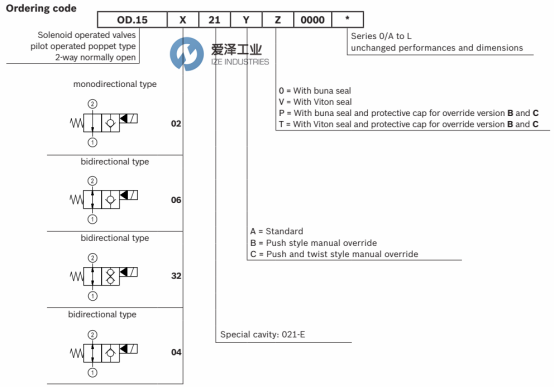

REXROTH OIL CONTROL閥VEI-16-021-NA系列選型
REXROTH OIL CONTROL閥VEI-16-021-NA系列其他常用型號：
REXROTH OIL CONTROL OD150221A000000 R930063874
REXROTH OIL CONTROL OD150621A000000 R930066964
REXROTH OIL CONTROL OD150621C000000 R930066969
REXROTH OIL CONTROL OD153221A000000 R930067155
REXROTH OIL CONTROL OD153221C000000 R930069397
REXROTH OIL CONTROL OD153221CP00000 R930068527
REXROTH OIL CONTROL OD150621B000000 R930068776
REXROTH OIL CONTROL OD150421A000000 R930066970
REXROTH OIL CONTROL OD150421C000000 R930069396
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150621A000000 R930066964的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD150621A000000 R930066964規格描述
