REXROTH OIL CONTROL閥04.11.18-X-99-Z規格描述
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 45 - 50 Nm (33 - 37 ft-lbs) |
Weight2) | 0.17 kg (0.38 lbs) |
Special cavity | 008 (see data sheet 18325-75) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit3) | Code: RG0008010000100 |
Fluids | Mineral-based or synthetics with lubricating properties |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

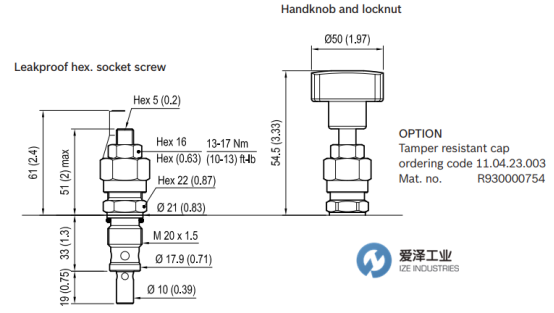

REXROTH OIL CONTROL閥04.11.18-X-99-Z系列外觀尺寸圖

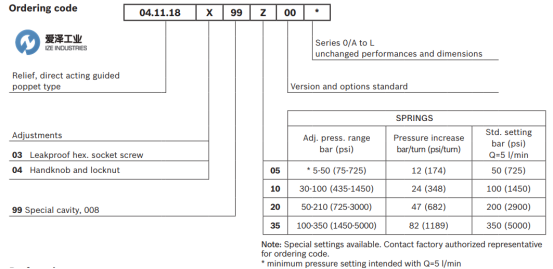

REXROTH OIL CONTROL閥04.11.18-X-99-Z系列選型
REXROTH OIL CONTROL閥VS-30系列其他常用型號：
REXROTH OIL CONTROL 041118049905000 R930000148
REXROTH OIL CONTROL 041118049910000 R930000149
REXROTH OIL CONTROL 041118049920000 R901127942
REXROTH OIL CONTROL 041118049935000 R930000151
REXROTH OIL CONTROL 041118039905000 R901113613
REXROTH OIL CONTROL 041118039910000 R901113614
REXROTH OIL CONTROL 041118039920000 R901226876
REXROTH OIL CONTROL 041118039935000 R901113617
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥041118039920000 R901226876的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥041118039920000 R901226876規格描述
