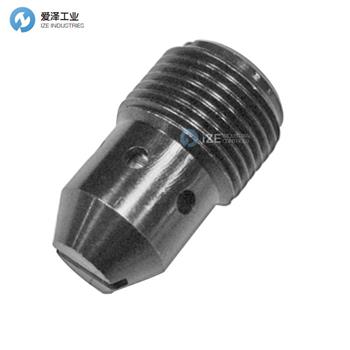

REXROTH OIL CONTROL閥SFC1系列技術規格
Technical data | |
Max. operating pressure bar (psi) | 210 (3000) |
Max. flow l/min. (gpm) | see “Regulated flow range” table |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Weight kg (lbs) | see “Dimensions” table |
Special cavity | see “Dimensions” |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) ISO 4406 20/18/15 |
Installation | No restrictions |

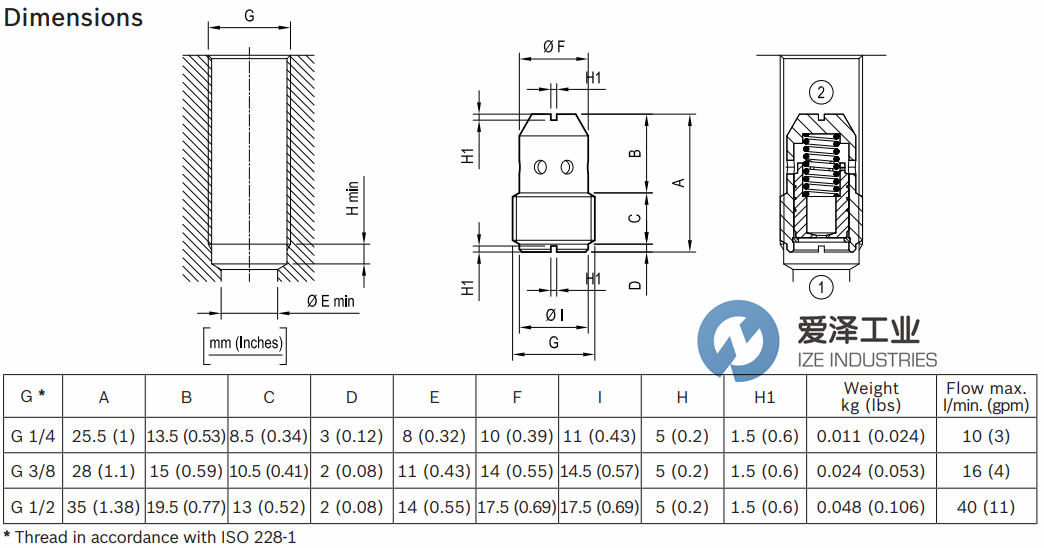

REXROTH OIL CONTROL閥SFC1系列技術尺寸圖

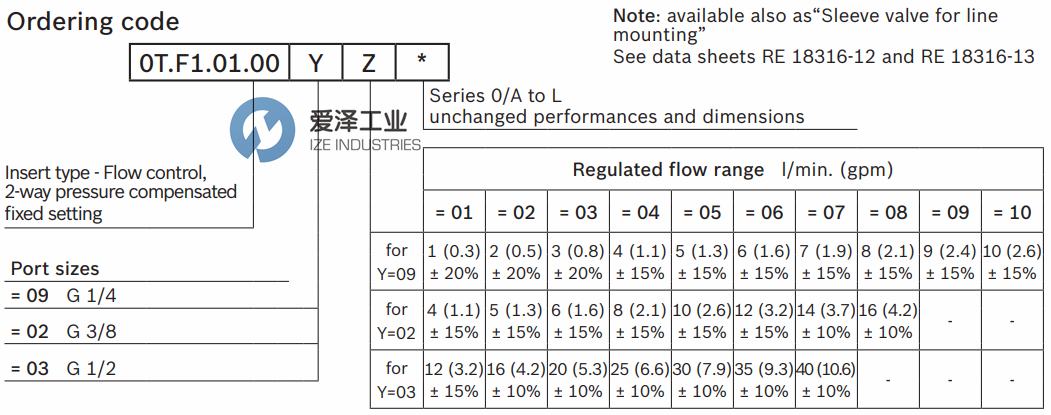

REXROTH OIL CONTROL閥SFC1系列選型
REXROTH OIL CONTROL閥SFC1系列其他常用型號：
REXROTH OIL CONTROL 0TF101000201000 R931002311
REXROTH OIL CONTROL 0TF101000202000 R931002312
REXROTH OIL CONTROL 0TF101000203000 R931002313
REXROTH OIL CONTROL 0TF101000204000 R931002314
REXROTH OIL CONTROL 0TF101000205000 R931000009
REXROTH OIL CONTROL 0TF101000206000 R931002315
REXROTH OIL CONTROL 0TF101000207000 R931002316
REXROTH OIL CONTROL 0TF101000208000 R931002317
REXROTH OIL CONTROL 0TF101000301000 R931002318
REXROTH OIL CONTROL 0TF101000302000 R931002319
REXROTH OIL CONTROL 0TF101000303000 R931002320
REXROTH OIL CONTROL 0TF101000304000 R931002321
REXROTH OIL CONTROL 0TF101000305000 R931002322
REXROTH OIL CONTROL 0TF101000306000 R931002063
REXROTH OIL CONTROL 0TF101000307000 R931001404
REXROTH OIL CONTROL 0TF101000901000 R931002304
REXROTH OIL CONTROL 0TF101000902000 R931000010
REXROTH OIL CONTROL 0TF101000903000 R931000272
REXROTH OIL CONTROL 0TF101000904000 R931002305
REXROTH OIL CONTROL 0TF101000905000 R931002306
REXROTH OIL CONTROL 0TF101000906000 R931000011
REXROTH OIL CONTROL 0TF101000907000 R931002307
REXROTH OIL CONTROL 0TF101000908000 R931002308
REXROTH OIL CONTROL 0TF101000909000 R931002309
REXROTH OIL CONTROL 0TF101000910000 R931002310
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥0TF101000201000 R931002311的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥0TF101000201000 R931002311規格描述
