REXROTH OIL CONTROL閥OD.15-X-75-Y-Z規格描述
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage: | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
Common cavity | CA-16A-2N see 18325-70 |
Seal kit for X=03,05 | code RG12A2010520100 |
Seal kit for X=31 | code RG12A2010530100 |
Seal kit coil and standard cap | code RG01Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately |

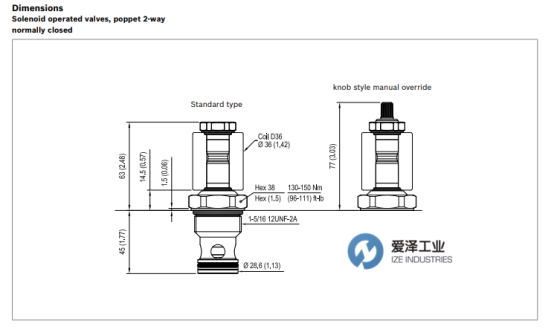

REXROTH OIL CONTROL閥OD.15-X-75-Y-Z外觀尺寸圖

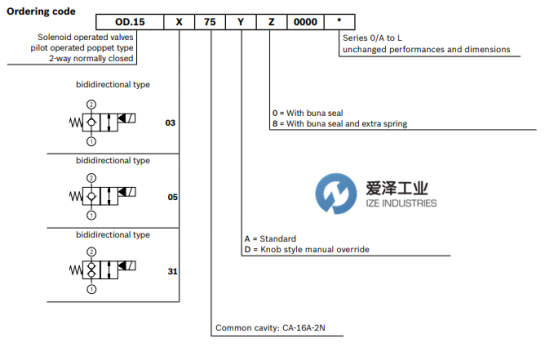

REXROTH OIL CONTROL閥OD.15-X-75-Y-Z選型參考
Technical data
New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.
技術數據
新的VEI-16系列采用了新的螺線管概念,可提供出色的性能,并使硒鼓可在惡劣的環境下工作。彈藥筒還采用了先進的液壓零件設計,可提供出色的液壓性能。
REXROTH OIL CONTROL閥VEI-16-16A-NC系列其他常用型號:
REXROTH OILCONTROL OD150375A000000 R930070263
REXROTH OILCONTROL OD150575A000000 R930069969
REXROTH OILCONTROL OD150575D000000 R930070067
REXROTH OILCONTROL OD153175A000000 R930069968
REXROTH OILCONTROL OD153175D000000 R930070358
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
