REXROTH OIL CONTROL閥VCD1系列技術參數
Technical data | |
Max. operating pressure bar (psi) | 315 (4500) |
Max. flow l/min. (gpm) | see “Flow range adjustment” table and “Performance” graphs |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet RE 18350-50 |

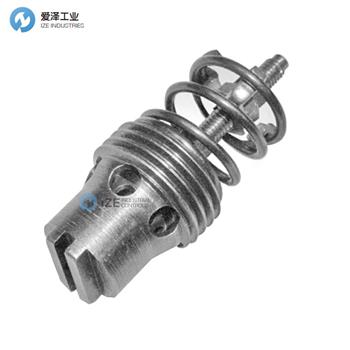

REXROTH OIL CONTROL閥VCD1系列介紹
這些閥既可以用作下降控制裝置，也可以用作兩種流量調節器。 在首選項中，它們使下降速度在很大程度上不受負載的影響，而在第二選項中，它們將流量限制為可在調節流路內調節的預設值。 在相反的流動方向（從2到1）上，閥充當自由流量單向閥，將壓降降低到較低值。
These valves can be used either as lowering control devices or as two ways flow regulators. In the firs option, they keep the lowering speed largely independent from the load, while, in the second option,they limit flow to the preset value which can be adjusted within the regulate flow path. On the opposite flow direction, from 2 to 1, the valve is acting as a free flow check reducing the pressure drop to low values.

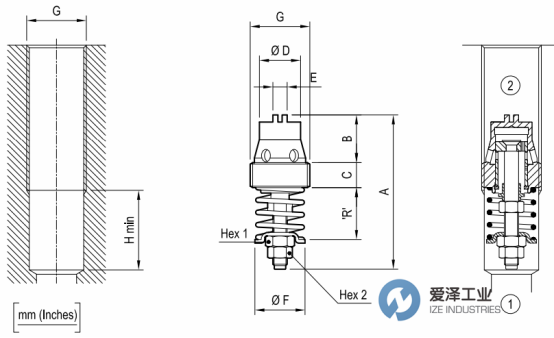

REXROTH OIL CONTROL閥VCD1系列技術尺寸

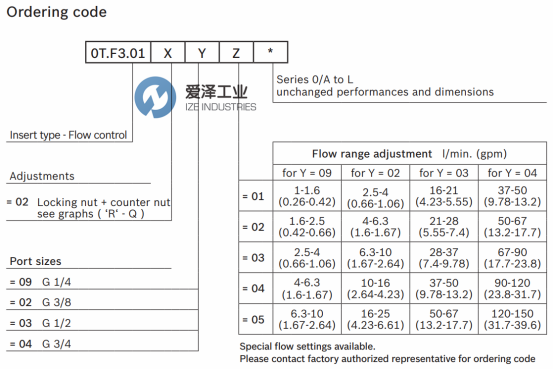

REXROTH OIL CONTROL閥VCD1系列選型介紹
REXROTH OIL CONTROL閥VCD1系列其他常用型號：
REXROTH OIL CONTROL 0TF301020201000 R931002328
REXROTH OIL CONTROL 0TF301020202000 R931002329
REXROTH OIL CONTROL 0TF301020203000 R931000012
REXROTH OIL CONTROL 0TF301020204000 R931000013
REXROTH OIL CONTROL 0TF301020205000 R931000424
REXROTH OIL CONTROL 0TF301020301000 R931002330
REXROTH OIL CONTROL 0TF301020302000 R931002332
REXROTH OIL CONTROL 0TF301020303000 R931002034
REXROTH OIL CONTROL 0TF301020304000 R931000342
REXROTH OIL CONTROL 0TF301020305000 R931002333
REXROTH OIL CONTROL 0TF301020401000 R931000014
REXROTH OIL CONTROL 0TF301020402000 R931002334
REXROTH OIL CONTROL 0TF301020403000 R931002335
REXROTH OIL CONTROL 0TF301020404000 R931002336
REXROTH OIL CONTROL 0TF301020405000 R931002337
REXROTH OIL CONTROL 0TF301020901000 R931000015
REXROTH OIL CONTROL 0TF301020902000 R931002324
REXROTH OIL CONTROL 0TF301020903000 R931002325
REXROTH OIL CONTROL 0TF301020904000 R931002326
REXROTH OIL CONTROL 0TF301020905000 R931002327
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥0TF301020904000 R931002326的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥0TF301020904000 R931002326更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥0TF301020904000 R931002326技術參數
