REXROTH OIL CONTROL閥VRFC3-VS系列技術參數
Technical data | |
Max. pressure | 210 bar (3000 psi) |
Adj. relief valve: range 35-210 bar (500-3000 psi) | |
QE= max. inlet flow “E” port (see “Dimensions”) | |
QR= max. regulated flow “R” port (see “Dimensions” | |
Flow range adjustment | 0 - 3 turns |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
REXROTH OIL CONTROL閥VRFC3-VS系列介紹
從E到R建立了恒定的壓力補償流量，而最小壓力差約為。兩個端口之間存在5 bar（70 psi）的壓力。供應給E的輸入流量超過R處的調節輸出時，將被旁路到T。輸出流量可以從關閉到閥的標稱最大額定值變化。閥模塊包括一個小的先導溢流閥芯，該閥芯可感測調節流量的壓力，并在達到最大允許壓力時將其導流至油箱。從R到E的逆流受節流閥的選定開度限制，并且沒有壓力補償。不允許從T到E或從T到R的流量。
A constant pressure compensated flow rate is established from E to R, while a minimum pressure differential of appr. 5 bar (70 psi) exists between the two ports. Input flow supplied to E in excess of the regulated output at R is bypassed to T. Output flow can be varied from closed to the nominal maximum rating for the valve. The valve module includes a small pilot relief cartridge which senses the pressure of the Regulated flow and diverts it to tank if the maximum allowed pressure is reached. Reverse flow from R to E is limited by the selected opening of the restrictor and is not pressure compensated. Flow from T to E or from T to R is not permitted.

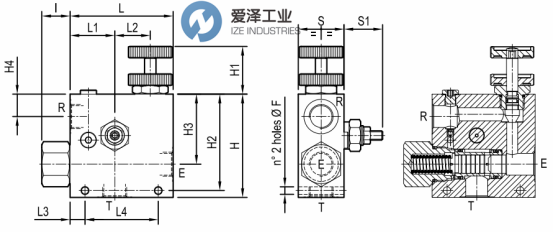

REXROTH OIL CONTROL閥VRFC3-VS系列技術尺寸

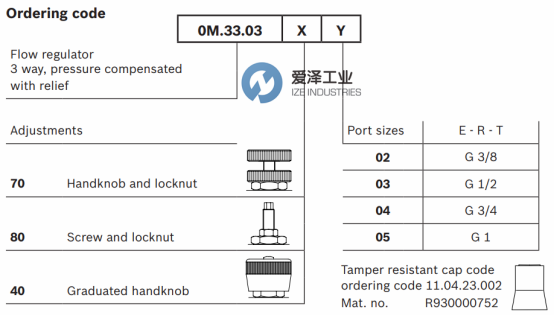

REXROTH OIL CONTROL閥VRFC3-VS系列選型介紹
REXROTH OIL CONTROL閥VRFC3-VS系列其他常用型號：
0M330370020000A R930004260
0M330370030000A R930004262
0M330370040000A R930004263
0M330370050000A R930004264
0M330380020000A R930004266
0M330380030000A R930004267
0M330380040000A R930004268
0M330380050000A R930004270
0M330340020000A R930004251
0M330340030000A R930004252
0M330340040000A R930004254
0M330340050000A R930004255
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥0M330370050000A R930004264的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥0M330370050000A R930004264更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥0M330370050000A R930004264技術參數
