REXROTH OIL CONTROL閥VEI-16-08S-NC系列技術參數
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage | 5 drops/min. |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Special cavity | 019-E see 18325-75 |
Seal kit for X=01,05,07 | code RG19E201052010 |
Seal kit for X=11,13 | code RG19E201053010 |
Seal kit coil | code RG01Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

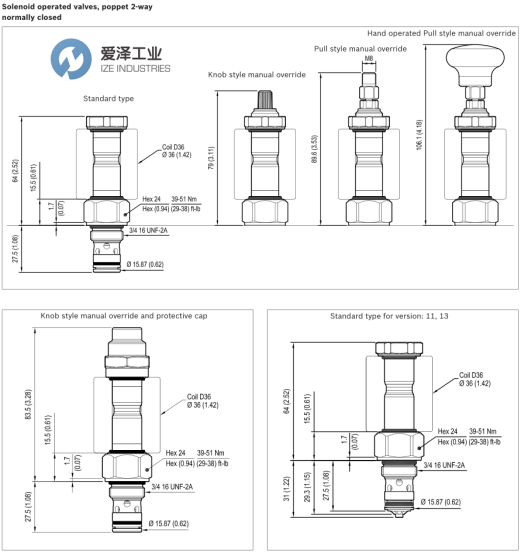

REXROTH OIL CONTROL閥VEI-16-08S-NC系列技術尺寸

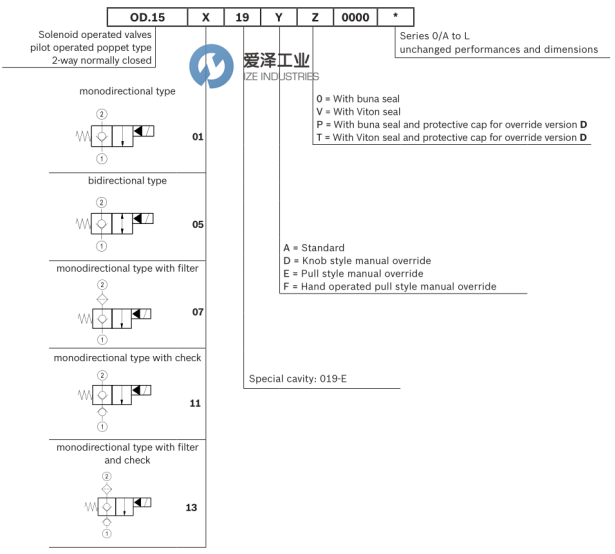

REXROTH OIL CONTROL閥VEI-16-08S-NC系列選型介紹
REXROTH OIL CONTROL閥VEI-16-08S-NC系列其他常用型號：
REXROTH OIL CONTROL OD150519A000000 R930058433
REXROTH OIL CONTROL OD150519DP00000 R930058531
REXROTH OIL CONTROL OD150719A000000 R930058431
REXROTH OIL CONTROL OD150719DP00000 R930058530
REXROTH OIL CONTROL OD151119A000000 R930060459
REXROTH OIL CONTROL OD151319A000000 R930058333
REXROTH OIL CONTROL OD151319D000000 R930058343
REXROTH OIL CONTROL OD150119E000000 R930060857
REXROTH OIL CONTROL OD150519E000000 R930060865
REXROTH OIL CONTROL OD150719E000000 R930060872
REXROTH OIL CONTROL OD151119E000000 R930060882
REXROTH OIL CONTROL OD151319E000000 R930060890
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD151119A000000 R930060459的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥OD151119A000000 R930060459更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD151119A000000 R930060459技術參數
