REXROTH OIL CONTROL閥 04.11.49-X-56-Z規格描述
Max. operating pressure port 1 (P) bar (psi) | 350 (5000) |
Max. pressure admitted port 2 (T) bar (psi) | 140 (2000) |
Max. flow l/min. (gpm) | 20 (5.3) |
Max. internal leakage (*) drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 34-41 (25-30) |
Weight (**) kg (lbs) | 0.09 (0.2) |
Cavity | CA-08A-2N |
Seal kit (***) code material no. | RG08A2010520100 R901101437 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Other general technical data | See data sheet RE 18350-50 |
(*) Max. to 80% of nominal setting
(**) Standard version X=03 type
(***) Only external seals for 10 valves

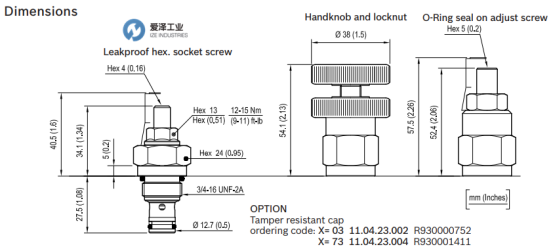

REXROTH OIL CONTROL閥 04.11.49-X-56-Z外觀尺寸圖

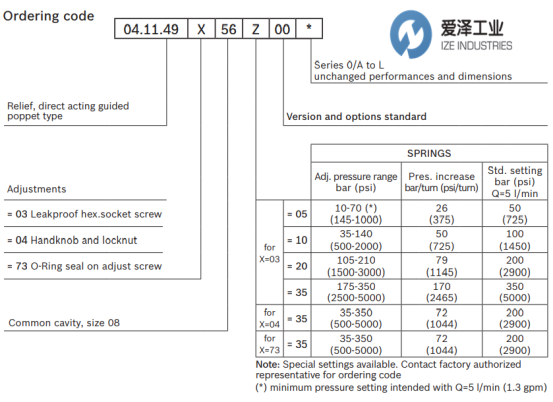

REXROTH OIL CONTROL閥 04.11.49-X-56-Z型號解析
REXROTH OIL CONTROL閥VSBN-08A系列其他常用型號：
REXROTH OIL CONTROL 041149035605000 R901113598
REXROTH OIL CONTROL 041149035610000 R901113599
REXROTH OIL CONTROL 041149035620000 R901097728
REXROTH OIL CONTROL 041149035635000 R901091914
REXROTH OIL CONTROL 041149045635000 R901113600
REXROTH OIL CONTROL 041149735635000 R901113601
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 041149735635000 R901113601的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥041149735635000 R901113601規格描述
