REXROTH OIL CONTROL閥VRFA-08A系列技術參數
Technical data | |
Pressure min. - max. | 10 - 210 bar (145 - 3000 psi) |
Flow range | see “Regulated flow range” table |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 34 - 41 Nm (25 - 30 ft-lbs) |
Weight | 0.12 kg (0.27 lbs) |
Cavity | CA-08A-2N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit | Code: RG08A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation | No restrictions |

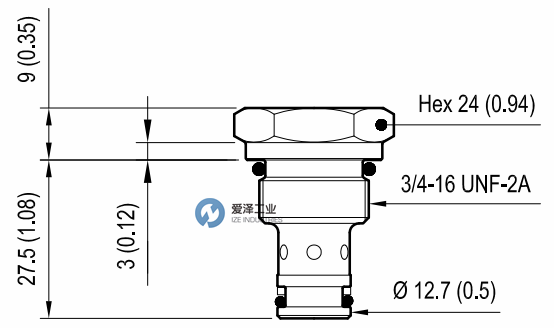

REXROTH OIL CONTROL閥VRFA-08A系列技術尺寸

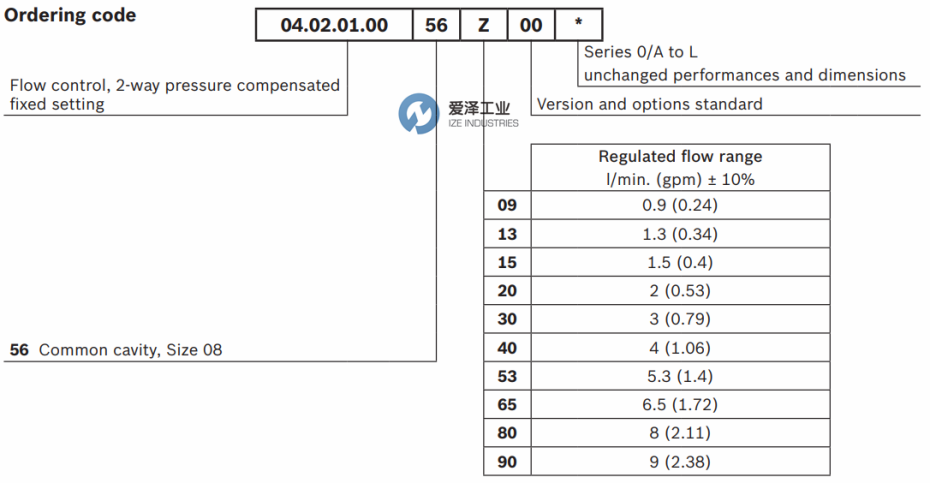

REXROTH OIL CONTROL閥VRFA-08A系列選型介紹
REXROTH OIL CONTROL閥VRFA-08A系列其他常用型號：
040201005609000 R901109350
04020100561300A R901109351
040201005615000 R901184436
04020100562000A R901109352
040201005630000 R901109355
04020100564000A R901109357
040201005653000 R901109360
04020100566500A R901109361
04020100568000A R901109362
040201005690000 R930007463
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥040201005609000 R901109350的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥040201005609000 R901109350規格描述
