REXROTH OIL CONTROL閥VMSP-78系列技術參數
Technical data | |
Max. operating pressure port 1-3 bar (psi) | 350 (5000) |
Max. pressure admitted port 2 bar (psi) | 210 (3000) |
Flow range l/min. (gpm) | 5-30 (1.3-8) |
Max. internal leakage (*) cm3/min. (cu.in./min.) | 25 (1.5) |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 41-47 (30-35) |
Weight kg (lbs) | 0.28 (0.62) |
Special cavity | 308 see data sheet RE 18325-75 |
Seal kit (**) | code RG0308010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |

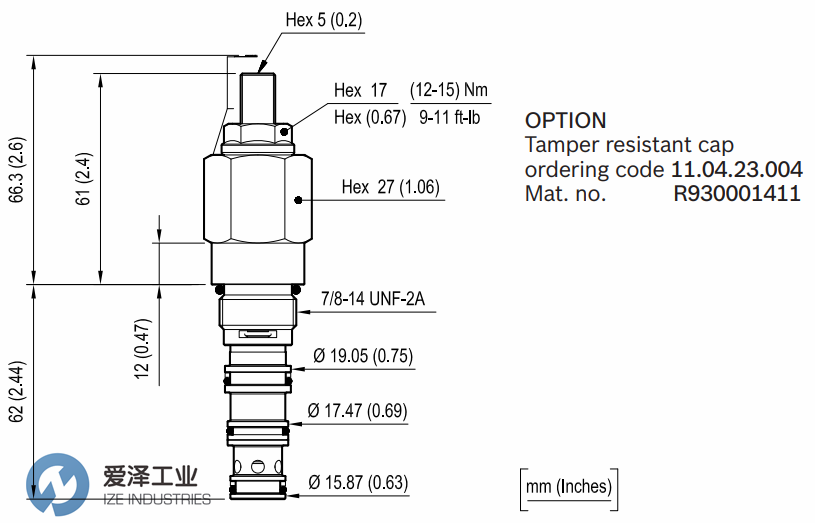

REXROTH OIL CONTROL閥VMSP-78系列技術尺寸

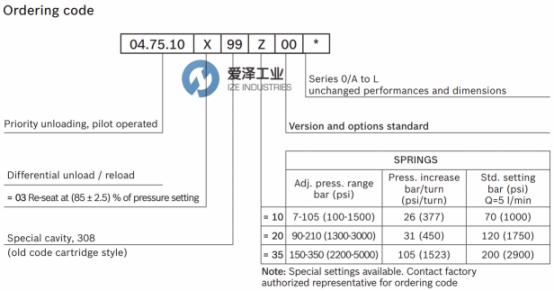

REXROTH OIL CONTROL閥VMSP-78系列選型介紹
REXROTH OIL CONTROL閥VMSP-78系列其他常用型號：
REXROTH OIL CONTROL 04751003991000D R930005772
REXROTH OIL CONTROL 04751003992000D R930005779
REXROTH OIL CONTROL 04751003993500C R930005780
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥04751003992000D R930005779的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥04751003992000D R930005779規格描述
