REXROTH OIL CONTROL閥VPI-8A-2A-06-NC系列技術參數
General | |
Weight | 0.27 (0.58) kg (lbs) |
Installation orientation | Optional |
Ambient temperature range | —30 to 60 (-22 to 140) °C (°F) |
Hydraulic | |
Max. operating pressure | 350 (5000) bar (psi) |
Max. flow | 40 (11) l/min. (gpm) |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | —20 to 80 (-4 to 176)°C (°F) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 39-51 (29-38) Nm (ft-lbs) |
Filtration | CA-08A-2N see RE 18325-70 |
Seal kit - version 05 | code RG08A2010520100 |
Seal kit - version 31 | code RG08A2010530100 |
Other technical data | See data sheet RE 18350-50 |

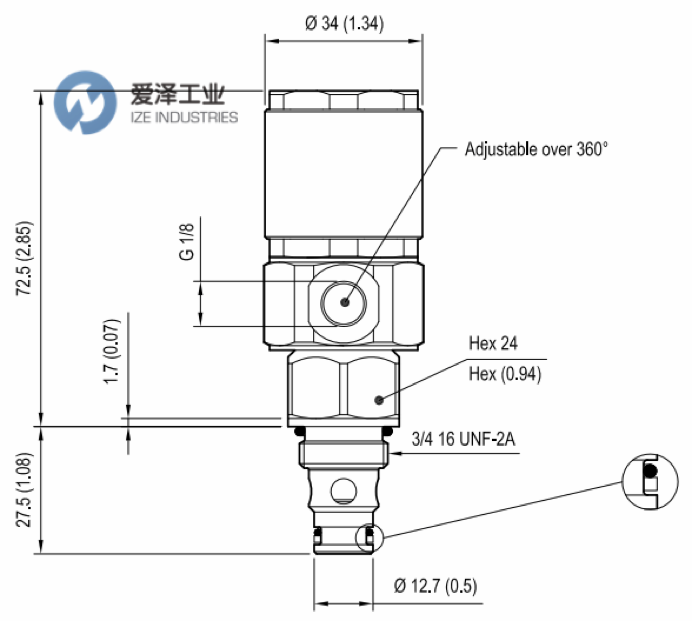

REXROTH OIL CONTROL閥VPI-8A-2A-06-NC系列尺寸圖

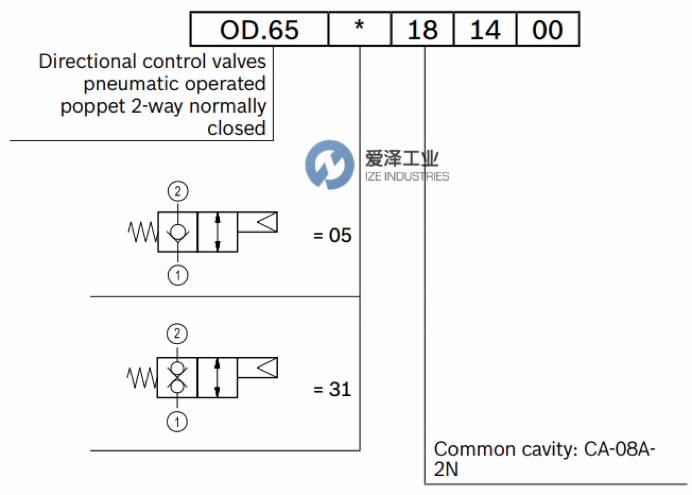

REXROTH OIL CONTROL閥VPI-8A-2A-06-NC系列選型
REXROTH OIL CONTROL閥VPI-8A-2A-06-NC系列其他常用型號：
REXROTH OIL CONTROL OD650518140000 R901109457
REXROTH OIL CONTROL OD653118140000 R901109462
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD650518140000 R901109457的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD650518140000 R901109457技術數據
