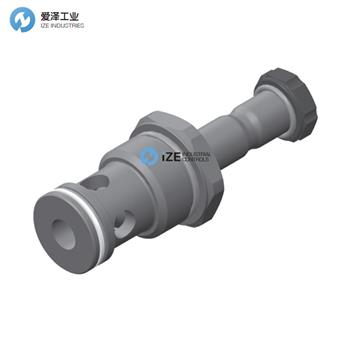

REXROTH OIL CONTROL閥OD.15-X-17-Y-Z規格描述
Technical data | ||
General | ||
Weight | 0.25 kg (0.55 lbs) | |
Installation orientation | Unrestricted | |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) | |
Hydraulic | ||
Max. operating pressure | 350 bar (5000 psi) | |
Flow range | 2 - 70 l/min (0.53 - 18 gpm) | |
Fatigue cycle life | 2 million cycles at 350 bar | |
Max. internal leakage: | 20 drops/min. | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) | |
Switching time | Opening ≤ 50 ms | |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) | |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | ||
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 | |
MTTFd | 150 years see RE 18350-51 | |
Special cavity | 017-E see 18325-75 | |
Seal kit for X= 02,06,12 | code | RG17E201052010 |
Seal kit for X= 04,32 code material no. | code | RG17E201053010 |
Seal kit coil and standard cap | code | RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B,C | code | RG03Z0010000100 |
Other technical data | See data sheet 18350-50 | |
Electrical | ||
Type of voltage | DC voltage | |
Coil type | D36 | |
Supply voltage | See data sheet 18325-90 | |
Voltage tolerance against ambient temperature | See characteristic curve | |
Power consumption | 20 W | |
Type of protection | See data sheet 18325-90 | |
Note: Coils must be ordered separately | ||

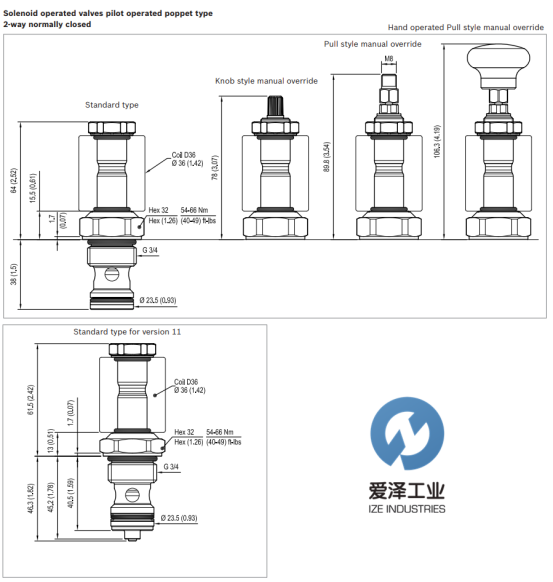

REXROTH OIL CONTROL閥OD.15-X-17-Y-Z外觀尺寸圖

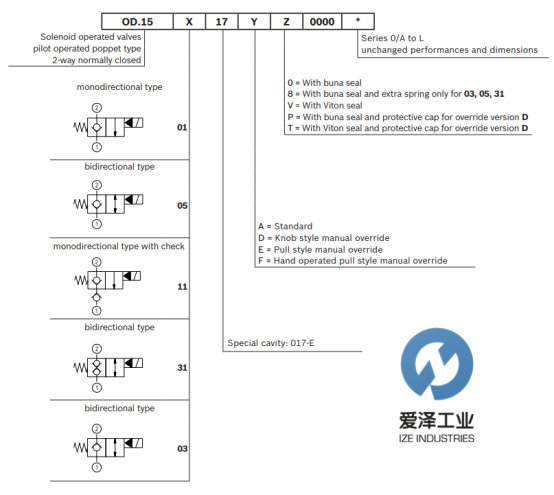

REXROTH OIL CONTROL閥OD.15-X-17-Y-Z型號解析
REXROTH OIL CONTROL閥VEI-16-NC系列其他常用型號：
REXROTH OIL CONTROL OD150117A000000 R930062337
REXROTH OIL CONTROL OD150117D000000 R930065472
REXROTH OIL CONTROL OD150517A000000 R930062338
REXROTH OIL CONTROL OD150517D000000 R930064099
REXROTH OIL CONTROL OD151117A000000 R930064362
REXROTH OIL CONTROL OD150517DP00000 R930066439
REXROTH OIL CONTROL OD153117A000000 R930065028
REXROTH OIL CONTROL OD153117D000000 R930067162
REXROTH OIL CONTROL OD150317A000000 R930066965
REXROTH OIL CONTROL OD150317D000000 R930066967
REXROTH OIL CONTROL OD150517A800000 R930065551
REXROTH OIL CONTROL OD150317A800000 R930065610
REXROTH OIL CONTROL OD150517E000000 R930070202
REXROTH OIL CONTROL OD153117A800000 R930066700
REXROTH OIL CONTROL OD153117D800000 R930067588
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
