REXROTH OIL CONTROL閥VEI-16-NA-004系列技術數據
Technical data | |
General | |
Weight | 1.13 kg (2.5 lbs) |
Installation orientation | Optional |
Storage ambient temperature range | —40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | —30 to 90 °C (-22 to 194 °F) |
Salt spray test to | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Rated fl ow | 260 l/min (69 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | —20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 110 - 130 Nm (81 - 96 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 25 μm(NAS 8) ISO 4406 19/17/14 |
Special cavity | 004 see 18325-75 |
Lines bodies and standard assemblies | Please refer to section“Hydaulic integrated circuit” or consult factory |
Seal kit | code RG0004020520100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 see 18325-90 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Note: Coils must be ordered separately |

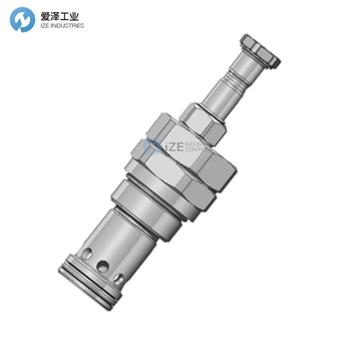

REXROTH OIL CONTROL閥VEI-16-NA-004系列介紹
新的VEI-16系列采用了新的螺線管概念,可提供出色的性能,并使硒鼓可在惡劣的環境下工作。墨盒還采用了先進的液壓零件設計,可提供出色的液壓性能。
New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.

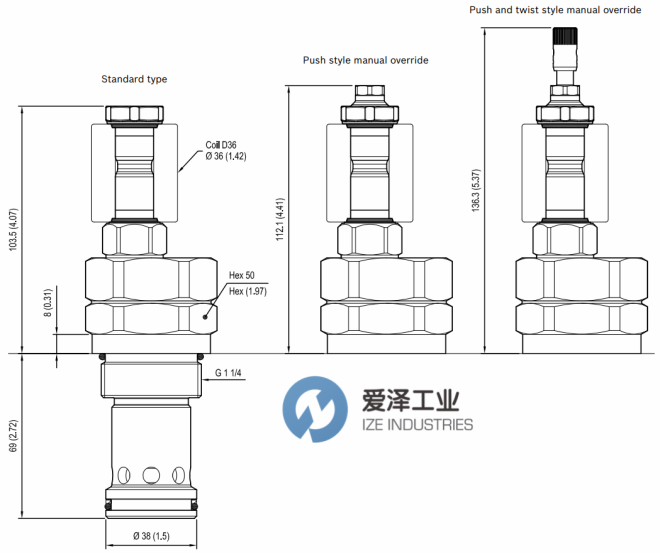

REXROTH OIL CONTROL閥VEI-16-NA-004系列尺寸圖

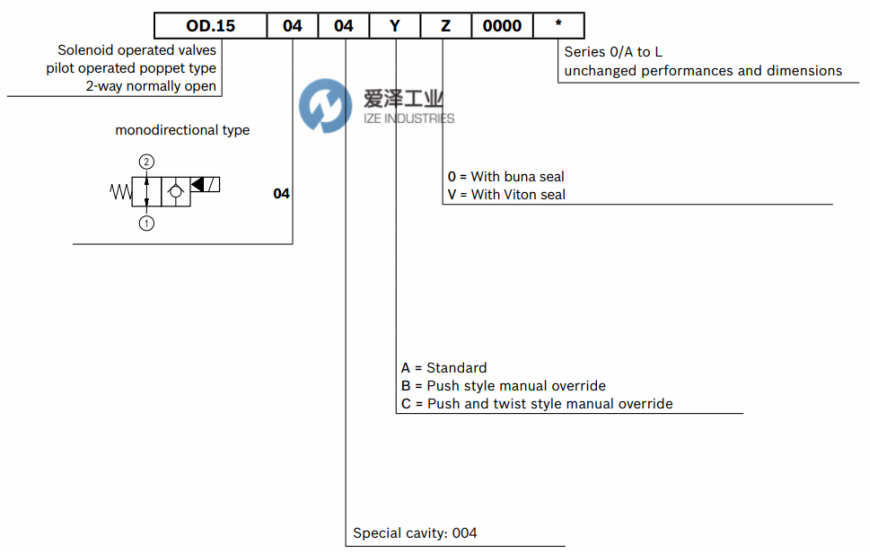

REXROTH OIL CONTROL閥VEI-16-NA-004系列選型
REXROTH OIL CONTROL閥VEI-16-NA-004系列其他常用型號:
REXROTH OIL CONTROL OD150404A000000 R930064863
REXROTH OIL CONTROL OD150404B000000 R930064864
REXROTH OIL CONTROL OD150404C000000 R930064865
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150404A000000 R930064863的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD150404A000000 R930064863技術參數
