REXROTH OIL CONTROL閥VEI-8A-09-NA系列技術參數
Technical data | |
General | |
Weight | 0.21 kg (0.46 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 2 - 70 l/min (0.5 - 18 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 except for codes market with |
Special Special cavity | 017-E see 18325-75 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit or consult factory” |
Seal kit–version 1 code/material no. | RG17E201052010/R934003562 |
Seal kit–version 2-3-4 code/material no. | RG17E201053010/R934003563 |
Seal kit coil code/material no. | RG12A1PNBR7010/R934003958 |
Other technical data | See data sheet RE 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet RE 18325-90 |
Note: Coils must be ordered separately | |

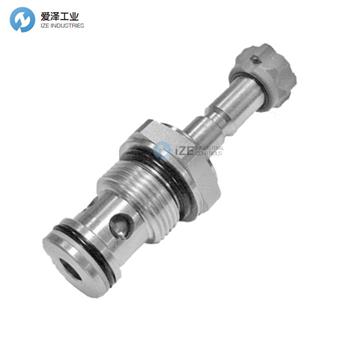

REXROTH OIL CONTROL閥VEI-8A-09-NA系列介紹
電磁操縱閥先導式提升閥類型2通常開
特殊腔體017-E
Solenoid operated valves pilot operated poppet type 2-way normally open
Special cavity, 017-E
REXROTH OIL CONTROL閥VEI-8A-09-NA系列尺寸圖

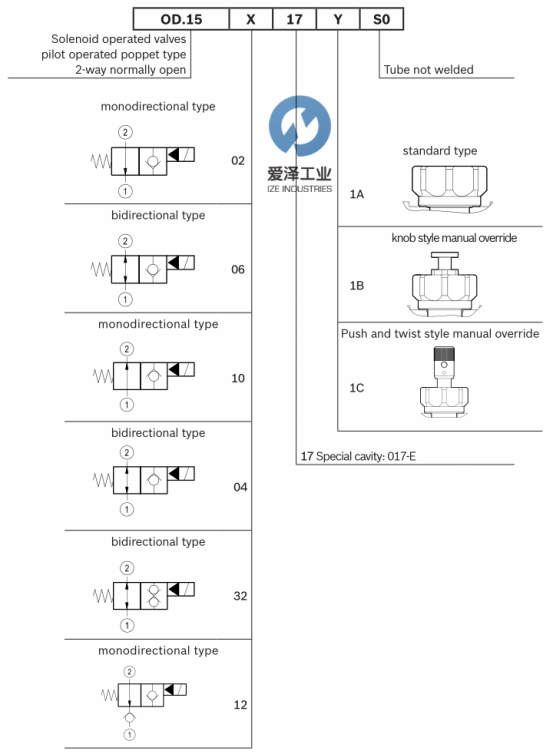

REXROTH OIL CONTROL閥VEI-8A-09-NA系列選型介紹
REXROTH OIL CONTROL閥VEI-8A-09-NA系列其他常用型號：
REXROTH OIL CONTROL OD1502171AS000 R934000718
REXROTH OIL CONTROL OD1502171BS000 R934000721
REXROTH OIL CONTROL OD1502171CS000 R901177370
REXROTH OIL CONTROL OD1506171AS000 R901113677
REXROTH OIL CONTROL OD1506171BS000 R901113680
REXROTH OIL CONTROL OD1506171CS000 R934000956
REXROTH OIL CONTROL OD1504171AS000 R901113668
REXROTH OIL CONTROL OD1504171BS000 R901113669
REXROTH OIL CONTROL OD1504171CS000 R934000809
REXROTH OIL CONTROL OD1510171AS000 R934001051
REXROTH OIL CONTROL OD1510171BS000 R934004148
REXROTH OIL CONTROL OD1510171CS000 R934001052
REXROTH OIL CONTROL OD1512171AS000 R934001090
REXROTH OIL CONTROL OD1532171AS000 R901113683
REXROTH OIL CONTROL OD1532171BS000 R901113684
REXROTH OIL CONTROL OD1532171CS000 R934001189
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1532171CS000 R934001189的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD1532171CS000 R934001189規格描述
