REXROTH OIL CONTROL閥VEI-8A-06-NC-ET系列規格描述
General | ||
Weight kg (lbs) | 0.13 (0.29) | |
Installation orientation | Optional | |
Ambient temperature range °C (°F) | —30 to 60 (-22 to 140) | |
Hydraulic | ||
Max. operating pressure bar (psi) | 350 (5000) | |
Rated flow l/min. (gpm) | 40 (11) | |
Max. internal leakage drops/min. | 20 | |
Fluid temperature range °C (°F) | —20 to 80 (-4 to 176) | |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque Nm (ft-lbs) | 39-51 (29-38) | |
Filtration | Nominal value max. 25μm (NAS 8) ISO 4406 19/17/14 | |
MTTFd | 150 years see RE18350-51 | |
Cavity | CA-08A-2N see RE 18325-70 | |
Seal kit - version 05 | code | RG08A2010520100 |
Seal kit - version 31 | code | RG08A2010530100 |
Seal kit coil | code | RG12A1PNBR7010 |
Other technical data | See data sheet RE 18350-50 | |
Electrical | ||
Type of voltage | DC voltage | |
Coil type | S8-356 see RE 18325-90 | |
Supply voltage | See data sheet RE 18325-90 | |
Nominal voltage | ± 10% | |
Power consumption W | 20 | |
Duty cycle coil % | See performance graphs | |
Type of protection | See data sheet RE 18325-90 | |

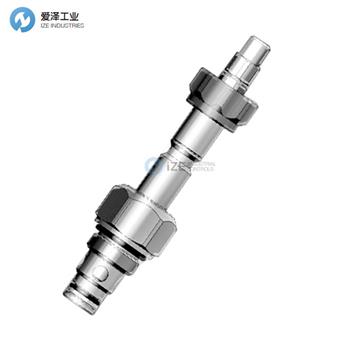

REXROTH OIL CONTROL閥VEI-8A-06-NC-ET系列介紹
電磁閥先導式提升閥2通常閉
Solenoid operated valves pilot operated poppet 2-way normally closed

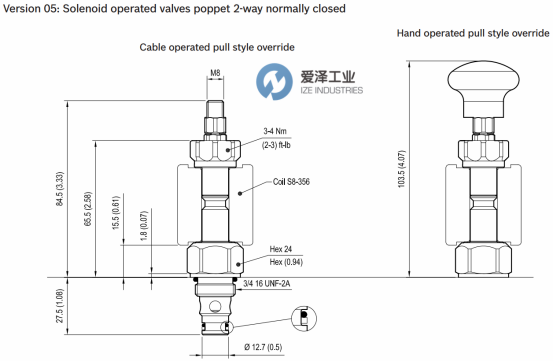

REXROTH OIL CONTROL閥VEI-8A-06-NC-ET系列尺寸圖

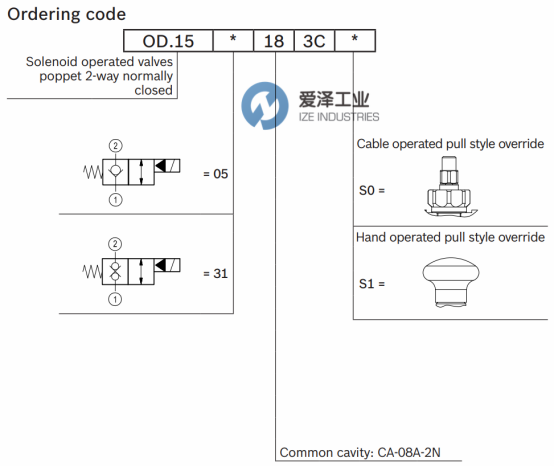

REXROTH OIL CONTROL閥VEI-8A-06-NC-ET系列選型介紹
REXROTH OIL CONTROL閥VEI-8A-06-NC-ET系列其他常用型號：
REXROTH OIL CONTROL OD1505183CS000 R901094735
REXROTH OIL CONTROL OD1505183CS100 R901094737
REXROTH OIL CONTROL OD1531183CS000 R901109982
REXROTH OIL CONTROL OD1531183CS100 R901109983
