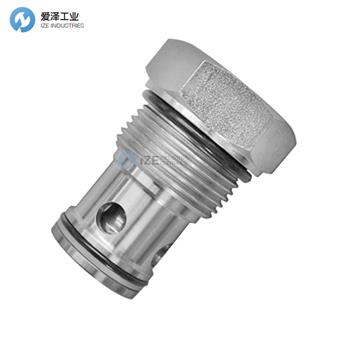

REXROTH OIL CONTROL閥04.31.25.00.27-Z規格描述
Technical data | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 200 (53) |
Max. internal leakage drops/min. | 5 |
Fluid temperature range °C (°F) | -30 to 100 °C (-22 to 212 °F) |
Installation torque Nm (ft-lbs) | 108-122 (80-90) |
Weight kg (lbs) | 0.27 (0.6) |
Cavity | CA-16A-2N see data sheet RE 18325-70 |
Seal kit (**) | Code: RG16A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet RE 18350-50 |
REXROTH OIL CONTROL閥04.31.25.00.27-Z型號解析
REXROTH OIL CONTROL閥04.31.25.00.27-Z型號選型及介紹
Description
When pressure at 1 rises above the spring bias pressure, the poppet is lifted and flow allowed from 1 to 2. The valve is closed (checked) from 2 to 1. Precision machining and hardening processes allow virtually leak-free performance in the checked condition.
描述
當1處的壓力上升到高于彈簧偏置壓力時，提升閥芯被允許從1流動到2。閥門從2閉合（檢查）到1。精密的機械加工和硬化工藝可在檢查條件下實現幾乎無泄漏的性能 。
REXROTH OIL CONTROL閥VUCN-16A系列其他常用型號：
REXROTH OIL CONTROL 0431250027A0000 R930004414
REXROTH OIL CONTROL 043125002700000 R901106616
REXROTH OIL CONTROL 043125002702000 R901106617
REXROTH OIL CONTROL 043125002704000 R930000481
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥043125002700000 R901106616的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥043125002700000 R901106616規格描述
