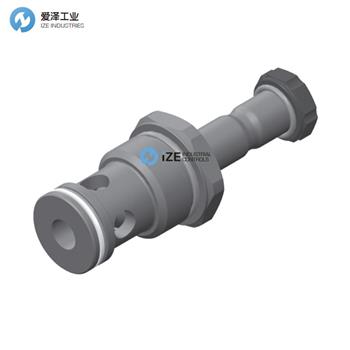

REXROTH OIL CONTROL閥OD.15-X-21-Y-Z規格描述
Technical data | |
General | |
Weight | 0.35 kg (0.77 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage: | 20 drops/min. for X= 01,05 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Special cavity | 021-E see 18325-75 |
Seal kit for X=01,05 | code RG21E201052010 |
Seal kit for X=03,09,11,31 | code RG21E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

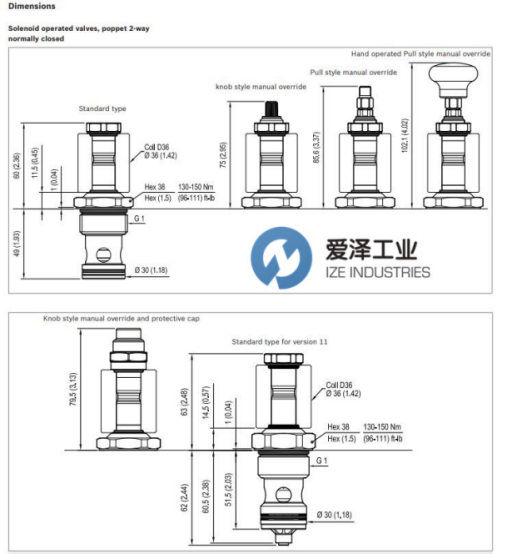

REXROTH OIL CONTROL閥OD.15-X-21-Y-Z外觀尺寸圖

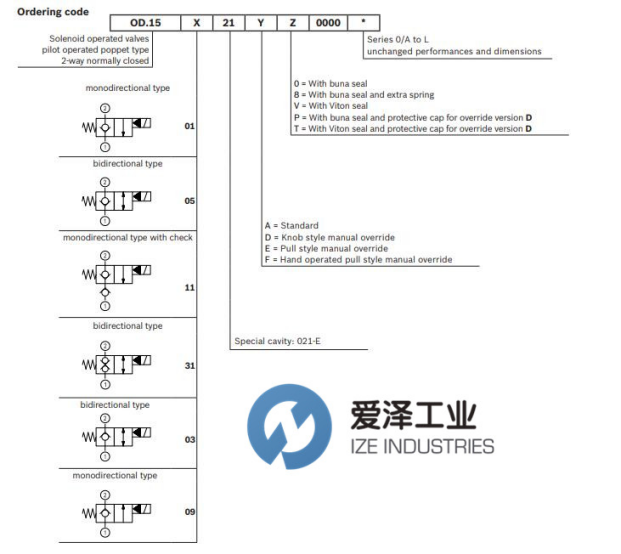

REXROTH OIL CONTROL閥OD.15-X-21-Y-Z型號解析
Technical data
New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.
技術數據
新的VEI-16系列采用了新的螺線管概念，可提供出色的性能，并使硒鼓可在惡劣的環境下工作。 彈藥筒還采用了先進的液壓零件設計，可提供出色的液壓性能。
OIL CONTROL閥其他常見OD.15-X-21-Y-Z系列型號：
REXROTH OIL CONTROL OD150121A000000 R930064100
REXROTH OIL CONTROL OD150521A000000 R930064472
REXROTH OIL CONTROL OD150521A800000 R930065846
REXROTH OIL CONTROL OD150521D000000 R930066968
REXROTH OIL CONTROL OD151121A000000 R930068693
REXROTH OIL CONTROL OD151121D000000 R930065027
REXROTH OIL CONTROL OD153121A000000 R930068523
REXROTH OIL CONTROL OD153121A800000 R930069360
REXROTH OIL CONTROL OD153121D000000 R930068526
REXROTH OIL CONTROL OD153121D800000 R930069505
REXROTH OIL CONTROL OD150521D800000 R930070647
REXROTH OIL CONTROL OD150321A000000 R930070069
REXROTH OIL CONTROL OD150321D000000 R930069699
REXROTH OIL CONTROL OD150321D800000 R930070199
REXROTH OIL CONTROL OD150921A000000 R930068524
REXROTH OIL CONTROL OD150121A800000 R930068927
