REXROTH-OIL CONTROL

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:05410110043500A,R930001664
REXROTH OIL CONTROL閥05410110043500A
預估貨期:
關  鍵  詞:05410110043500AR930001664REXROTHOIL CONTROL
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

REXROTH OIL CONTROL閥05.41.62-X-Y-Z規格描述

Technical data


Hydraulic


Operating pressure bar (psi)

up to 210 (3000)

Max. flow: see performance graph

Relief setting: at least 1.3 times the highest expected load.

General


Manifold material

Aluminium

Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.

Weight

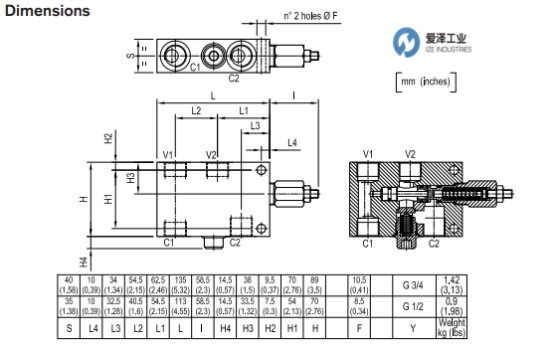

see “Dimensions”

Fluid temperature range °C (°F)

between -30 (-22) and +100 (212)

Other technical data

see data sheet RE 18350-50

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

REXROTH OIL CONTROL閥05.41.62-X-Y-Z型號解析




REXROTH OIL CONTROL閥05.41.62-X-Y-Z型號選型及介紹




Description

When pressure at V2 rises above the spring bias pressure, the check valve poppet is pushed away from the seat and flow is allowed from V2 to C2. When load  pressure at C2 rises above the pressure setting, the direct operated, differential area, relief function is activated and flow is relieved from C2 to V2. With pilot pressure at V1-C1, the pressure setting is reduced in proportion to the stated ratio of the valve, until opening and allowing flow from C2 to V2. The spring chamber is drained to V2, and any back-pressure at V2 is additive to the pressure setting in all functions.



描述

當V2處的壓力升高到高于彈簧偏置壓力時,止回閥提動閥芯被推離閥座,并允許從V2到C2的流量。當C2處的負載壓力上升到壓力設定值以上時,將激活直接操作的差動面積,溢流功能,并且流量將從C2釋放到V2。在先導壓力為V1-C1的情況下,壓力設定值按閥的規定比例成比例降低,直到打開并允許從C2到V2的流量。彈簧腔排空到V2,V2處的任何背壓都會加到所有功能的壓力設定中。



REXROTH OIL CONTROL閥VBSO-SE系列其他常用型號:

REXROTH OILCONTROL 054101030320000 R930001654

REXROTH OILCONTROL 05410103033500A R930001655

REXROTH OILCONTROL 054101030420000 R930001658

REXROTH OILCONTROL 05410103043500A R930001659

REXROTH OILCONTROL 054101100320000 R930000088

REXROTH OILCONTROL 05410110033500A R930001662

REXROTH OILCONTROL 054101100420000 R930001663

REXROTH OILCONTROL 05410110043500A R930001664



REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY



愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。



如果有任何關于REXROTH OIL CONTROL閥05410110043500A R930001664的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。



If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.


REXROTH OIL CONTROL閥05410110043500A R930001664規格描述
