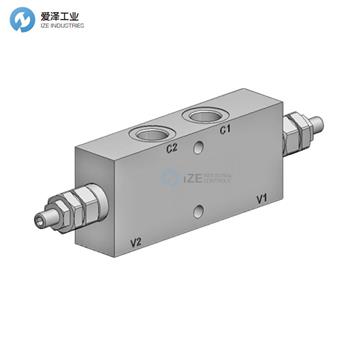

REXROTH OIL CONTROL閥08.44.04-X-Y-Z規格描述
Technical data | |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min (gpm) | 60 (16) |
Relief setting: at least 1.3 times the highest expected load. | |
General | |
Manifold material | Steel |
Weight | see “Dimensions” |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |
Other technical data | see data sheet RE 18350-50 |

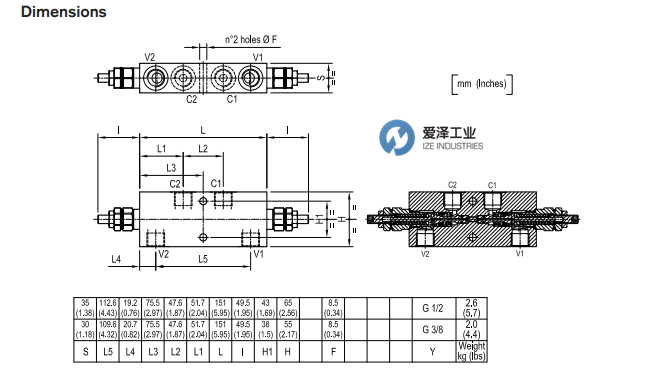

REXROTH OIL CONTROL閥08.44.04-X-Y-Z系列尺寸圖

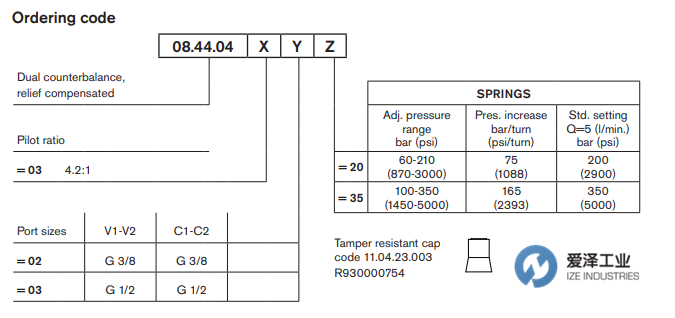

REXROTH OIL CONTROL閥08.44.04-X-Y-Z選型及介紹
Description
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve with balanced piston, pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Relief operates at the valve setting independent of back-pressure, but the piloted opening remains subject to additive pressure at V1 or V2.
描述
它通過調節執行器通過端口C1和C2的流入和流出來提供負載的靜態和動態控制。 該閥模塊包括2個部分，每個部分由一個止回閥和一個帶平衡活塞的溢流閥組成，先導在相反管路中的壓力輔助下：止回段允許自由流入執行機構，然后保持負載反向運動。 通過在管路兩端施加先導壓力，溢流閥的壓力設置會按規定比例成比例降低，直到打開并允許受控的逆流。 溢流閥在閥設定值下獨立于背壓運行，但先導開度仍受制于V1或V2處的附加壓力。
REXROTH OIL CONTROL閥A-VBSO-DE-CC-30系列其他常用型號：
REXROTH OIL CONTROL 08440403022000A R930006986
REXROTH OIL CONTROL 08440403023500A R930006987
REXROTH OIL CONTROL 08440403032000A R930006978
REXROTH OIL CONTROL 08440403033500A R930006979
