REXROTH OIL CONTROL閥OD.13.10.51-Y-00規格描述
Technical data | |
General | |
Weight | 0.14 kg (0.31 lbs) |
Installation orientation | Any |
Ambient temperature range -30 to 60 °C (-22 to 140 °F) - coil 20W | |
Hydraulic | |
Max. operating pressure | 210 bar (3045 psi) |
Max. flow | 10 l/min. (3 gpm) |
Max. internal leakage | 40 cm3/min. (2.4 cu.in/min.) |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Filtration | Nominal value max. 10 μm |
Cavity | CA-08A-3N |
Seal kit | code RG08A3010530100 |
Seal kit coil | code RG12I1PNBR7010 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 |
Supply voltage | See data sheet 18325-90 |
Power consumption | See data sheet 18325-90 |
Duty cycle coil | See data sheet 18325-90 |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

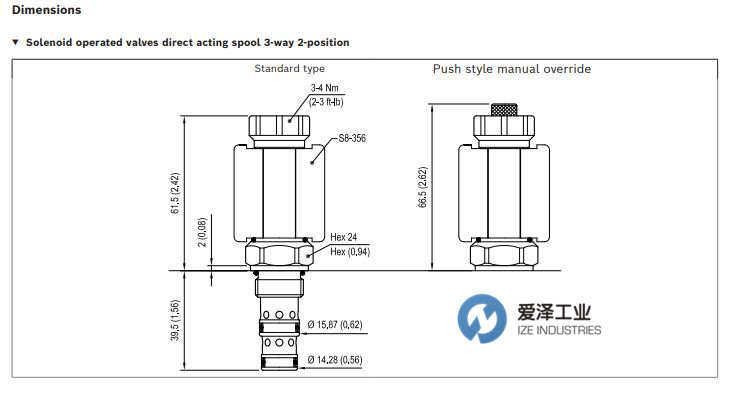

REXROTH OIL CONTROL閥OD.13.10.51-Y-00系列尺寸圖

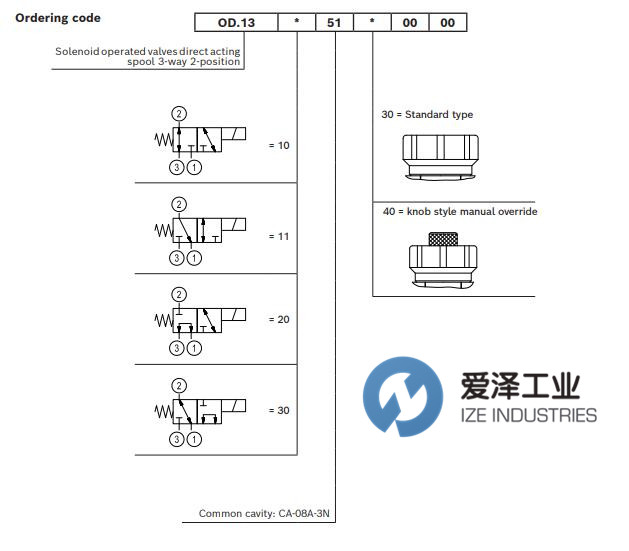

REXROTH OIL CONTROL閥OD.13.10.51-Y-00選型及介紹

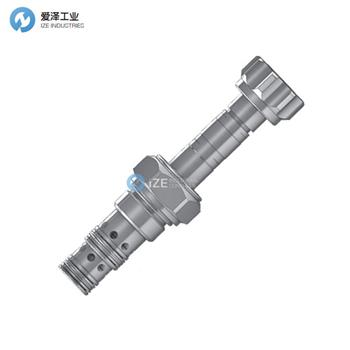

Solenoid operated valves direct acting spool 3-way 2-position Common cavity, Size 08
電磁閥直動 閥芯3通2位 普通型腔，尺寸08
REXROTH OIL CONTROL閥VED-8I-32-06-SE系列其他常用型號：
REXROTH OIL CONTROL OD131051300000 R901126871
REXROTH OIL CONTROL OD131051400000 R901126872
REXROTH OIL CONTROL OD131151300000 R901126873
REXROTH OIL CONTROL OD131151400000 R901126875
REXROTH OIL CONTROL OD132051300000 R901126892
REXROTH OIL CONTROL OD132051400000 R901126895
REXROTH OIL CONTROL OD133051300000 R901098192
REXROTH OIL CONTROL OD133051400000 R901126897
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 OD131051400000 R901126872的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD131051400000 R901126872技術數據
