REXROTH OIL CONTROL閥04.31.23.00.85-Z規格描述
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 80 (21) |
Max. internal drops/min. leakage | 5 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 41-47 (30-35) |
Weight kg (lbs) | 0.15 (0.33) |
Cavity | CA-10A-2N |
see data sheet RE 18325-70 | |
Seal kit (*) mat code erial no. | RG10A2010520100 R901111363 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 15 to 800 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet RE 18350-50 |
(*) Only external seals for 10 valves

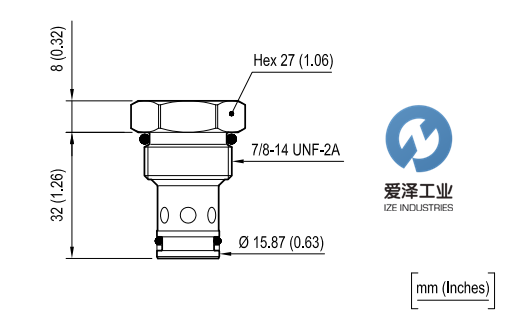

REXROTH OIL CONTROL閥04.31.23.00.85-Z外觀尺寸圖

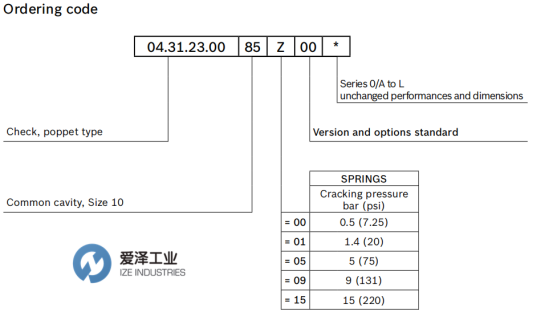

REXROTH OIL CONTROL閥04.31.23.00.85-Z型號解析
REXROTH OIL CONTROL閥VUCN-10A系列其他常用型號：
REXROTH OIL CONTROL 043123008500000 R901106596
REXROTH OIL CONTROL 043123008501000 R930005884
REXROTH OIL CONTROL 043123008505000 R901106601
REXROTH OIL CONTROL 043123008509000 R930000962
REXROTH OIL CONTROL 04312300851500A R901106602
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥043123008505000 R901106601的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥043123008505000 R901106601技術數據
