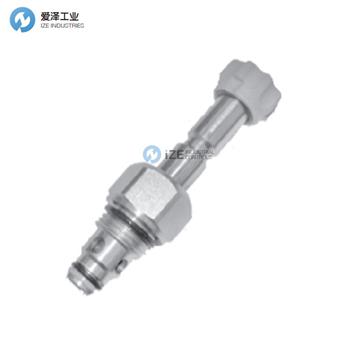

REXROTH OIL CONTROL閥OD.15-X-18-Y-Z系列規格描述
Technical data | |
General | |
Weight | 0.11 kg (0.24 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 0.5 - 30 l/min (0.1 - 8 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm 2 /s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-2N see 18325-70 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit” or consult factory |
Seal kit – version 1-2 | code RG08A2010520100 |
Seal kit coil | code RG12I1PNBR7010 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see 18325-90 |
Supply voltage | See data sheet 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

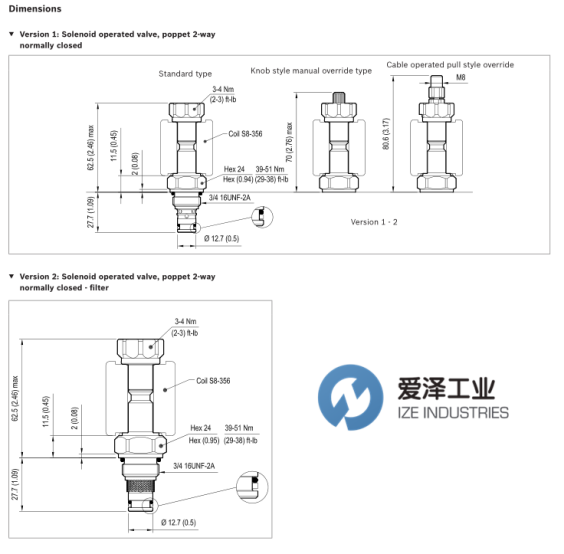

REXROTH OIL CONTROL閥OD.15-X-18-Y-Z系列尺寸

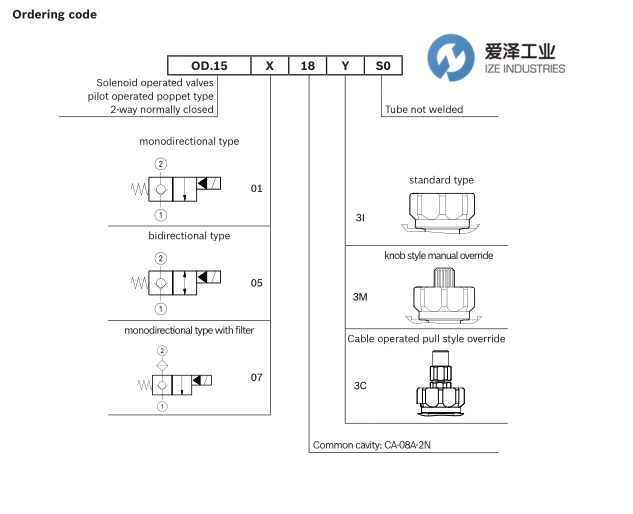

REXROTH OIL CONTROL閥OD.15-X-18-Y-Z系列選型介紹
General
Weight：0.11 kg (0.24 lbs)
Installation orientation ：Optional
Ambient temperature range： -30 to 60 °C (-22 to 140 °F)
一般
重量：0.11公斤（0.24磅）
安裝方向：可選
環境溫度范圍：-30至60°C（-22至140°F）
REXROTH OIL CONTROL閥OD.15-X-18-Y-Z系列其他常用型號：
REXROTH OIL CONTROL OD1501183IS000 R901090962
REXROTH OIL CONTROL OD1501183MS000 R901090966
REXROTH OIL CONTROL OD1505183IS000 R901090953
REXROTH OIL CONTROL OD1505183MS000 R901090950
REXROTH OIL CONTROL OD1507183IS000 R901091142
REXROTH OIL CONTROL OD1507183MS000 R934003486
REXROTH OIL CONTROL OD1507183CS000 R930054706
