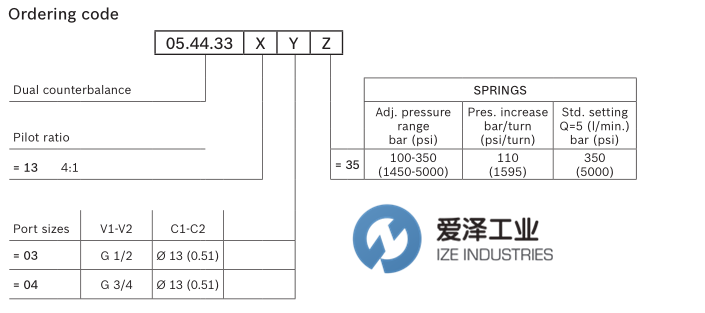

REXROTH OIL CONTROL閥05.44.33 - X - Y - Z規格描述
Technical data | |
Hydraulic | |
Operating pressure bar (psi) | up to 210 (3000) |
Max. flow l/min (gpm) | 150 (40) |
Relief setting: at least 1.3 times the highest expected load. | |
General | |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Weight kg (lbs) | 2.80 (6.17) |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |
Other technical data | see data sheet RE 18350-50 |
Note: for applications outside these parameters, please consult us. | |

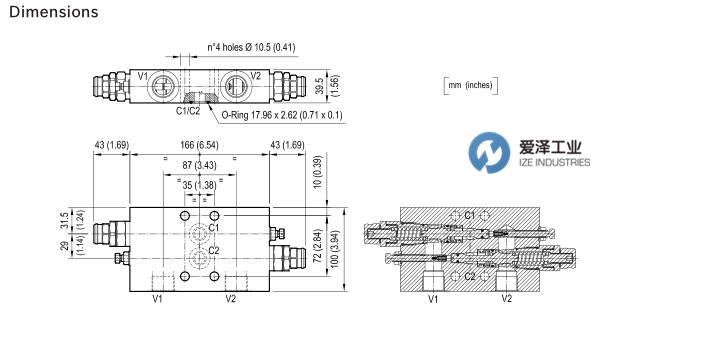

REXROTH OIL CONTROL閥05.44.33 - X - Y - Z系列安裝尺寸圖
REXROTH OIL CONTROL閥05.44.33 - X - Y - Z選型及介紹
Description
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Back-pressure at V1 or V2 is additive to the pressure setting in all functions. For better safety and compact assembly, the C1 and C2 ports are gasket mounted directly on the actuator
描述
它通過調節執行器通過端口C1和C2的流入和流出來提供負載的靜態和動態控制。該閥模塊包括2個部分，每個部分由一個單向閥和一個通過相反管路中的壓力輔助的溢流閥先導閥組成：單向閥允許自由流入執行機構，然后保持負載反向運動。通過在管路兩端施加先導壓力，安全閥的壓力設定將按規定的比例成比例減小，直到打開并允許受控的逆流。 在所有功能中，V1或V2處的背壓都會增加壓力設置。為了獲得更好的安全性和緊湊的裝配性，C1和C2端口直接通過墊片安裝在執行器上
REXROTH OIL CONTROL閥VBSO-DE-33-FC2系列其他常用型號：
REXROTH OIL CONTROL 05443313033500D R930007464
REXROTH OIL CONTROL 05443313043500D R930007140
REXROTH OIL CONTROL 05443313043500C R930002017
