REXROTH OIL CONTROL閥04.52.42-X-20-Z規格描述
Technical data | |
Max. operating pressure bar (psi) | 280 (4000) |
Max. flow l/min. (gpm) | 30 (8) |
Max. internal leakage (*) drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 40-50 (30-37) |
Weight kg (lbs) | 0.18 (0.4) |
Cavity | SUN T-11A |
Seal kit (**) code | RG08U9020110100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) |
Installation | No restrictions |
Other Technical Data | See data sheet RE 18350-50 |

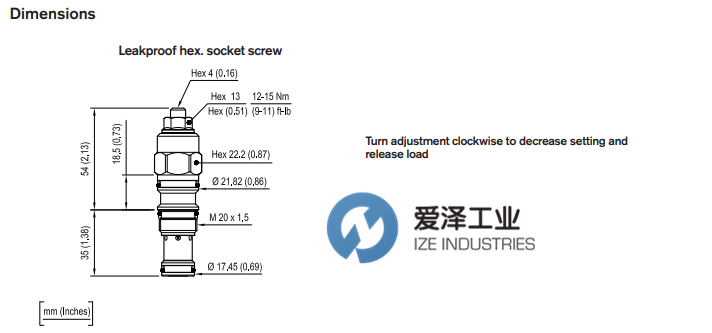

REXROTH OIL CONTROL閥04.52.42-X-20-Z系列尺寸圖

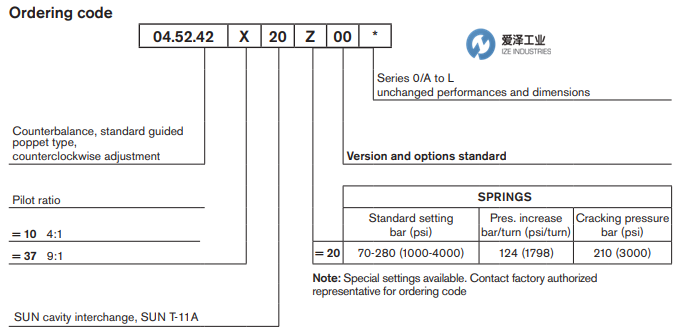

REXROTH OIL CONTROL閥04.52.42-X-20-Z選型及介紹
REXROTH OIL CONTROL閥VBSN-08UU-RS系列其他常用型號：
REXROTH OIL CONTROL 045242102020000 R930006107
REXROTH OIL CONTROL 045242372020000 R930006108
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 045242372020000 R930006108的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥045242372020000 R930006108技術數據
