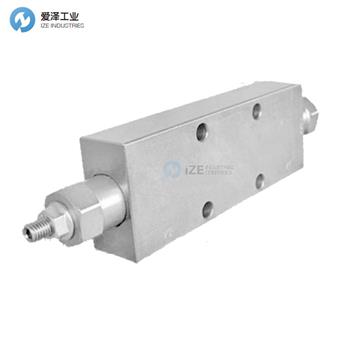

REXROTH OIL CONTROL閥08.44.11-X-Y-Z規格描述
Technical data | |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min (gpm) | 60 (16) |
Relief setting: at least 1.3 times the highest expected load. | |
General | |
Manifold material | Steel |
Weight | see “Dimensions” |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |
Other technical data | see data sheet RE 18350-50 |
Note: for applications outside these parameters, please consult us. | |

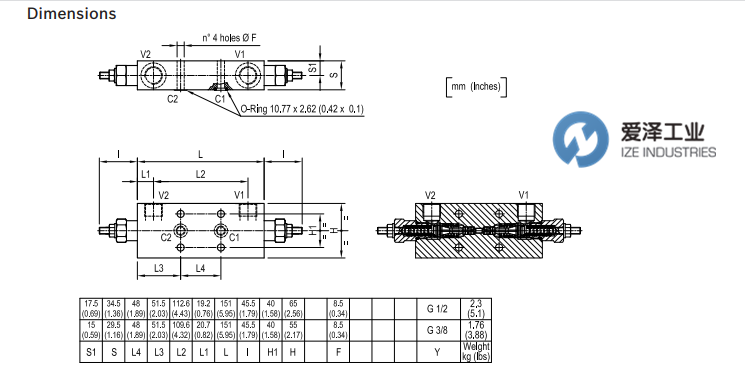

REXROTH OIL CONTROL閥08.44.11-X-Y-Z系列尺寸圖

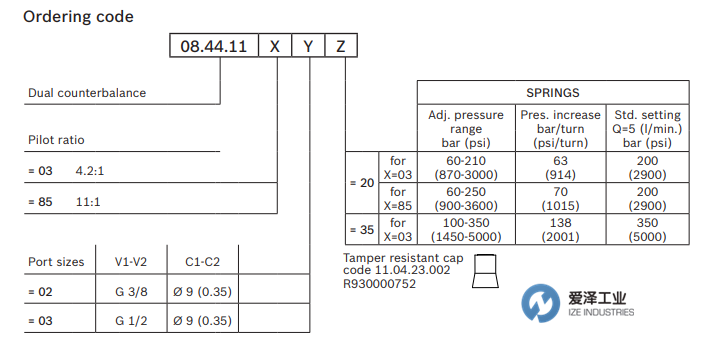

REXROTH OIL CONTROL閥08.44.11-X-Y-Z選型及介紹
Description
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Back-pressure at V1 or V2 is additive to the pressure setting in all functions. For better safety and compact assembly, the C1 and C2 ports are gasket mounted directly on the actuator.
描述
它通過調節執行器通過端口C1和C2的流入和流出來提供負載的靜態和動態控制。 該閥模塊包括2個部分，每個部分由一個單向閥和一個通過相反管路中的壓力輔助的溢流閥先導閥組成：?jiǎn)蜗蜷y允許自由流入執行機構，然后保持負載反向運動。 通過在管路兩端施加先導壓力，溢流閥的壓力設置會按規定比例成比例降低，直到打開并允許受控的逆流。 V1或V2處的背壓會加到所有功能的壓力設置中。 為了獲得更好的安全性和緊湊的裝配性，C1和C2端口直接通過墊圈安裝在執行器上。
REXROTH OIL CONTROL閥A-VBSO-DE-30-FC2系列其他常用型號：
REXROTH OIL CONTROL 08441103022000A R930003390
REXROTH OIL CONTROL 08441103023500A R930003391
REXROTH OIL CONTROL 08441103032000A R930001955
REXROTH OIL CONTROL 08441103033500A R930003399
REXROTH OIL CONTROL 08441185022000A R930003407
REXROTH OIL CONTROL 08441185032000A R930003409
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥08441103022000A R930003390的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥08441103022000A R930003390技術數據
