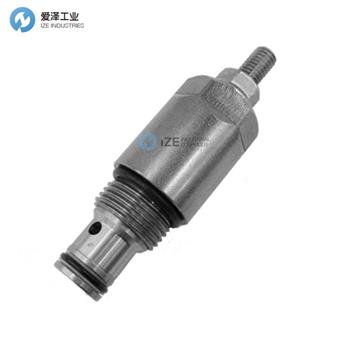

REXROTH OIL CONTROL閥04.11.56-X-85-Z規格描述
Technical data Max. operating | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 350 bar (5000 psi) |
Max. flow | 50 l/min (13 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-2N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit2) | Code: RG10A2010530100 material no: R901111366 |
Fluids | Mineral-based or synthetics with lubricating properties |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

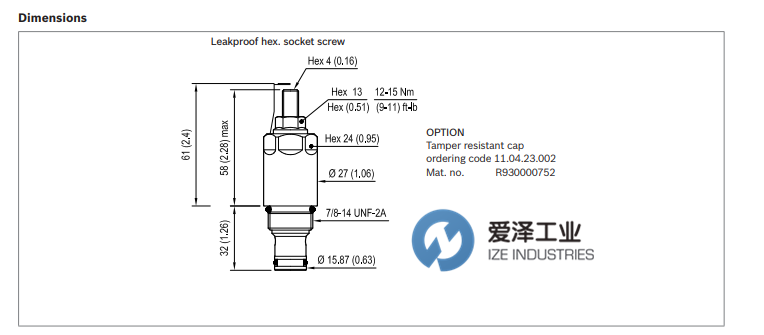

REXROTH OIL CONTROL閥04.11.56-X-85-Z圖紙
REXROTH OIL CONTROL閥04.11.56-X-85-Z選型及介紹
Description
Flow is blocked from 2 to 1 until pressure increases to meet the selected valve setting, lifting the poppet from its seat and allowing relief flow through port 1 to tank. Pressure at port 1 is additive to the relief setting of the valve. The unique Bosch rexroth oil control poppet design provides enhanced stability at all flows and pressures.
描述
流量從2阻塞到1，直到壓力增加到達到所選閥設置的水平，將提升閥從閥座上提起，并允許溢流通過端口1到達油箱。端口1的壓力會增加閥的泄壓設置。 獨特的博世力士樂控油提升閥設計在所有流量和壓力下均具有增強的穩定性。

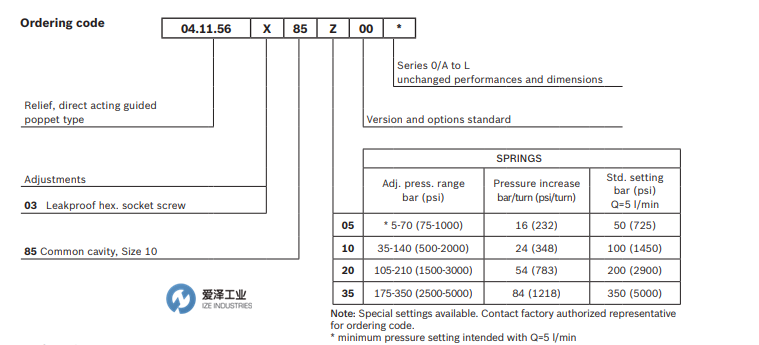

REXROTH OIL CONTROL閥VSBG-10A系列其他常用型號：
OIL CONTROL 041156038505000 R901157894
OIL CONTROL 041156038510000 R901113622
OIL CONTROL 041156038520000 R901113624
OIL CONTROL 041156038535000 R901113626
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥041156038520000 R901113624的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥041156038520000 R901113624技術數據
