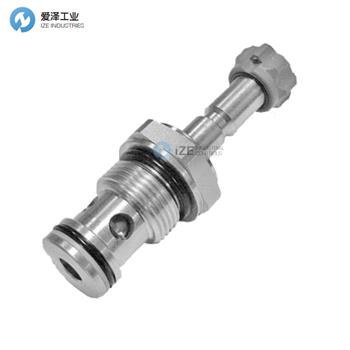

REXROTH OIL CONTROL閥OD.15-X-17-Y-S0規格描述
Technical data | |
General | |
Weight | 0.21 kg (0.46 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 2 - 70 l/min (0.5 - 18 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 except for codes market with |
Special Special cavity | 017-E see 18325-75 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit or consult factory” |
Seal kit–version 1 code | RG17E201052010 |
Seal kit–version 2-3-4 code material no. | RG17E201053010 |
Seal kit coil code | RG12A1PNBR7010 |
Other technical data | See data sheet RE 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet RE 18325-90 |
Note: Coils must be ordered separately | |

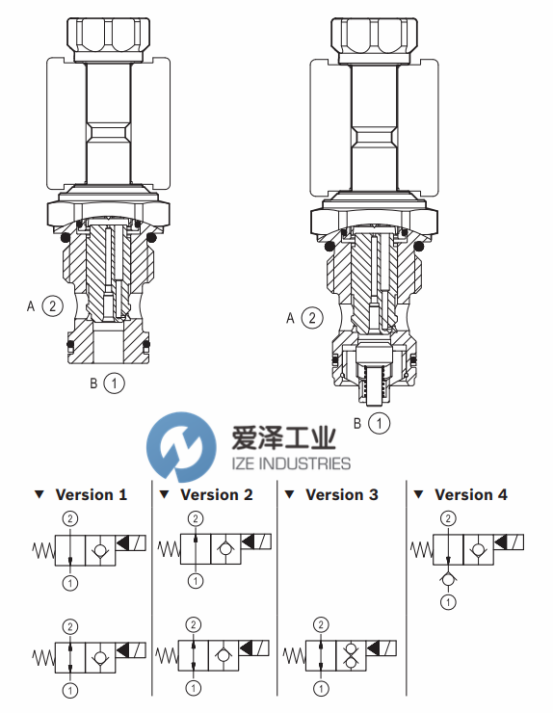

REXROTH OIL CONTROL閥OD.15-X-17-Y-S0技術尺寸

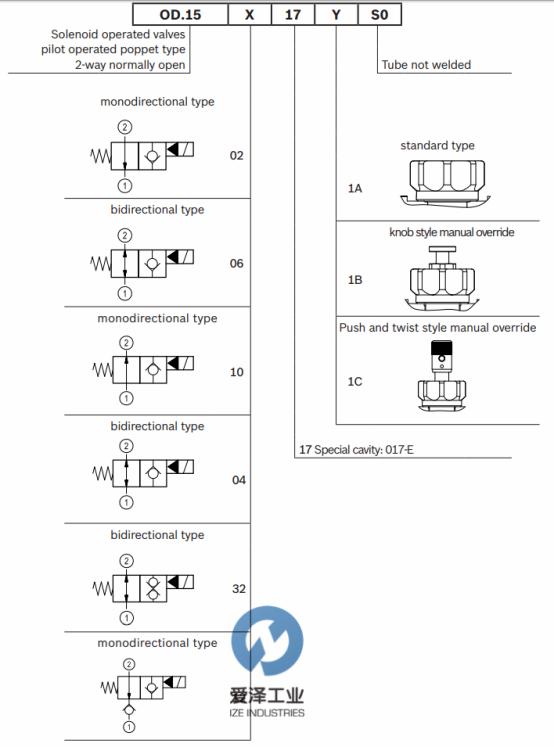

REXROTH OIL CONTROL閥OD.15-X-17-Y-S0選型參考
REXROTH OIL CONTROL閥OD.15-X-17-Y-S0系列其他常用型號：
REXROTH OIL CONTROL OD1504171CS000 R934000809
REXROTH OIL CONTROL OD1510171AS000 R934001051
REXROTH OIL CONTROL OD1510171BS000 R934004148
REXROTH OIL CONTROL OD1510171CS000 R934001052
REXROTH OIL CONTROL OD1512171AS000 R934001090*
REXROTH OIL CONTROL OD1532171AS000 R901113683
REXROTH OIL CONTROL OD1532171BS000 R901113684
REXROTH OIL CONTROL OD1532171CS000 R934001189
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
