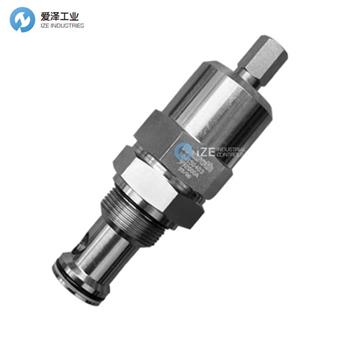

REXROTH OIL CONTROL閥04.15.04-X-99-Z規格描述
Max. operating pressure bar (psi) port 2 (P) | 210 (3000) | |
Max. operating pressure bar (psi) port 1 (T) | 140 (2000) | |
Max. flow | l/min. (gpm) | 350 (93) |
Max. internal leakage (*) | drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) | |
Installation torque | Nm (ft-lbs) | 245-264 (181-196) |
Weight | kg (lbs) | 1.5 (3.3) |
Special cavity | 004, see data sheet RE 18325-75 | |
Seal kit (**) | code material no. | RG0004020520100 R930001696 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) | |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 | |
Installation | No restrictions | |
Other Technical Data | See data sheet RE 18350-50 | |
(*) at 80% of pressure setting
(**) Only external seals for 10 valves

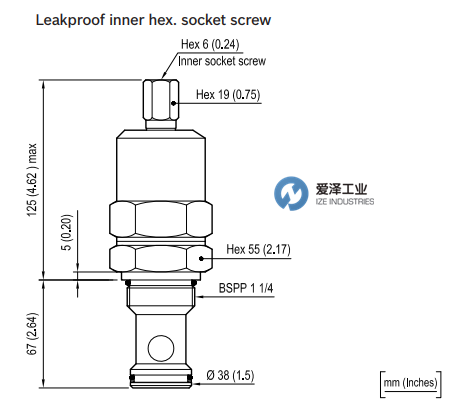

REXROTH OIL CONTROL閥04.15.04-X-99-Z外觀尺寸圖

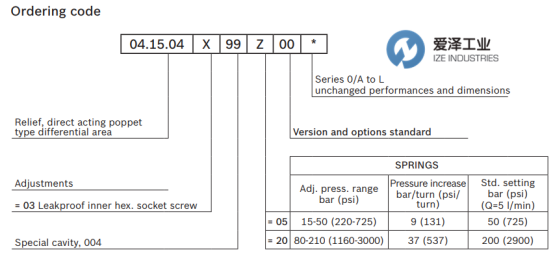

REXROTH OIL CONTROL閥04.15.04-X-99-Z型號解析
REXROTH OIL CONTROL閥VSD-350系列其他常用型號：
REXROTH OIL CONTROL 04150403990500A R930000377
REXROTH OIL CONTROL 04150403992000A R901113637
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥04150403990500A R930000377的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥04.15.04-X-99-Z 04150403990500A規格描述
