REXROTH OIL CONTROL閥OD.15-X-17-Y-S0規格描述
Technical data | |
General | |
Weight | 0.21 kg (0.46 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 2 - 70 l/min (0.5 - 18 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 except for codes market with |
Special Special cavity | 017-E see 18325-75 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit or consult factory” |
Seal kit–version 1 code/material no. | RG17E201052010/R934003562 |
Seal kit–version 2-3-4 code/material no. | RG17E201053010/R934003563 |
Seal kit coil code/material no. | RG12A1PNBR7010/R934003958 |
Other technical data | See data sheet RE 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet RE 18325-90 |
Note: Coils must be ordered separately | |

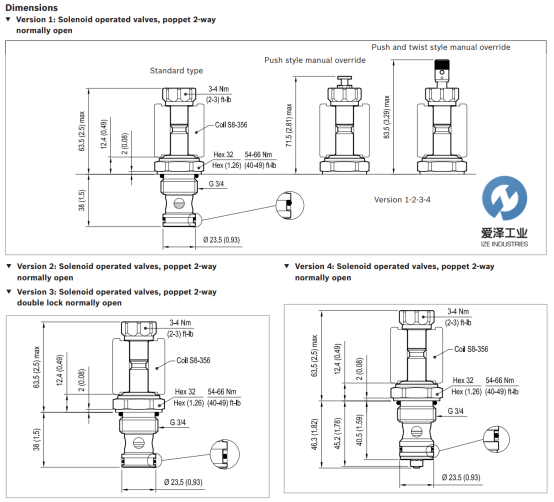

REXROTH OIL CONTROL閥OD.15-X-17-Y-S0外觀尺寸圖

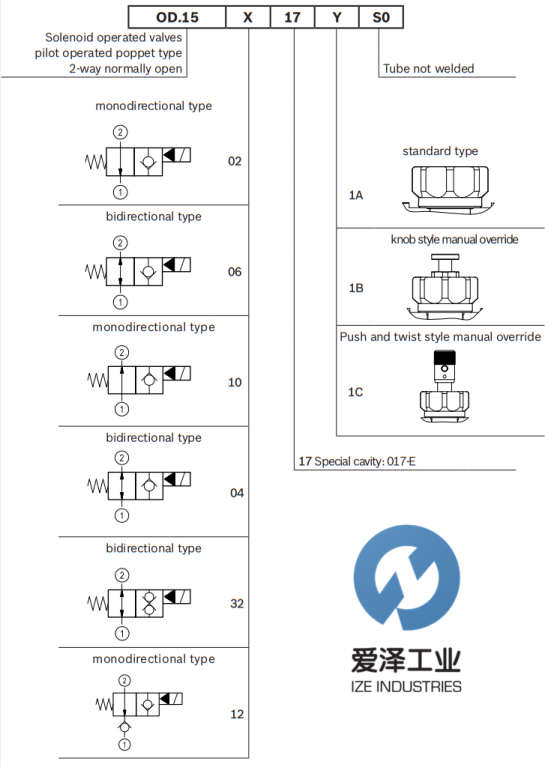

REXROTH OIL CONTROL閥OD.15-X-17-Y-S0型號解析
REXROTH OIL CONTROL閥VEI-8A-09-NA系列其他常用型號：
REXROTH OIL CONTROL OD1502171AS000 R934000718
REXROTH OIL CONTROL OD1502171BS000 R934000721
REXROTH OIL CONTROL OD1502171CS000 R901177370
REXROTH OIL CONTROL OD1506171AS000 R901113677
REXROTH OIL CONTROL OD1506171BS000 R901113680
REXROTH OIL CONTROL OD1506171CS000 R934000956
REXROTH OIL CONTROL OD1504171AS000 R901113668
REXROTH OIL CONTROL OD1504171BS000 R901113669
REXROTH OIL CONTROL OD1504171CS000 R934000809
REXROTH OIL CONTROL OD1510171AS000 R934001051
REXROTH OIL CONTROL OD1510171BS000 R934004148
REXROTH OIL CONTROL OD1510171CS000 R934001052
REXROTH OIL CONTROL OD1512171AS000 R934001090
REXROTH OIL CONTROL OD1532171AS000 R901113683
REXROTH OIL CONTROL OD1532171BS000 R901113684
REXROTH OIL CONTROL OD1532171CS000 R934001189
