REXROTH OIL CONTROL閥04.33.07-X-57-Z規格描述
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 120 l/min. (32 gpm) |
Pilot ratio | 3.2:1 |
Max. internal leakage | 5 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 81 - 95 Nm (60 - 70 ft-lbs) |
Weight | 0.25 kg (0.55 lbs) |
Cavity | CA-12A-3C (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit1) | Code: RG12A9010520100 |
material no: R901111379 | |
Fluids | Mineral-based or synthetics with lubricating properties |
at viscosities of 5 to 800 mm2/s (cSt) | |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |
1) Only external seals for 10 valves

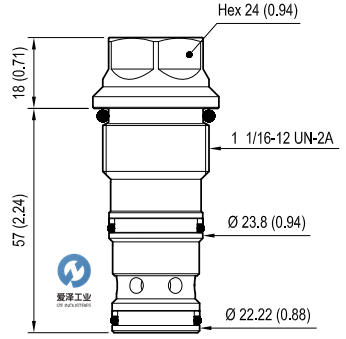

REXROTH OIL CONTROL閥04.33.07-X-57-Z外觀尺寸圖

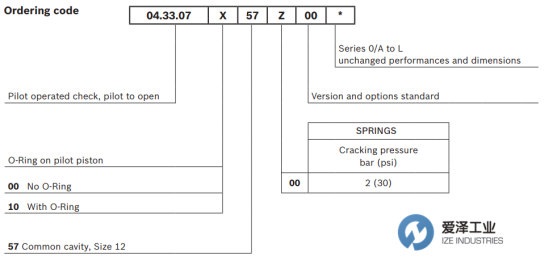

REXROTH OIL CONTROL閥04.33.07-X-57-Z型號解析
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL 043307005700000 R930006106
REXROTH OIL CONTROL 043307105700000 R901106634
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥043307105700000 R901106634的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥04.33.07-X-57-Z 043307105700000技術數據
