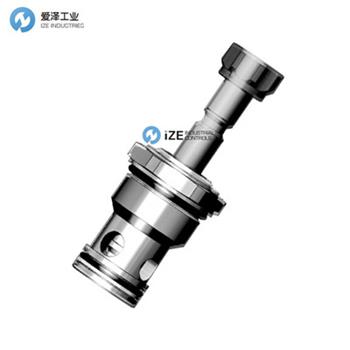

REXROTH OIL CONTROL閥OD.15-X-21-Y-Z技術數據
Technical data | |
General | |
Weight | 0.34 kg (0.75 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 1.5 - 40 l/min (0.4 - 11 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 except for codes marked with * |
Special cavity | 021-E see 18325-75 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit or consult factory” |
Seal kit–version 1 code/material no. | RG21E201052010/R934003566 |
Seal kit–version 2-3 code/material no. | RG21E201053010/R934003567 |
Seal kit coil code/material no. | RG12A1PNBR7010/R934003958 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL OD1501213AS000 R901144300
REXROTH OIL CONTROL OD1501213AS800 R934000707
REXROTH OIL CONTROL OD1501213DS000 R901085462
REXROTH OIL CONTROL OD1503213AS000 R901113666
REXROTH OIL CONTROL OD1503213AS800 R934003065
REXROTH OIL CONTROL OD1503213DS000 R934000792
REXROTH OIL CONTROL OD1503213DS800 R934003066
REXROTH OIL CONTROL OD1505213AS000 R901104395
REXROTH OIL CONTROL OD1505213AS800 R901119221
REXROTH OIL CONTROL OD1505213DS000 R901119267
REXROTH OIL CONTROL OD1509213AS000 R901132881
REXROTH OIL CONTROL OD1511213AS000 R901138183
REXROTH OIL CONTROL OD1511213AS800 R934001086
REXROTH OIL CONTROL OD1531213AS000 R901104412
REXROTH OIL CONTROL OD1531213AS800 R901119002
REXROTH OIL CONTROL OD1531213DS000 R901132876
REXROTH OIL CONTROL OD1531213DS800 R901125793
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD.15-X-21-Y-Z的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD.15-X-21-Y-Z技術參數
