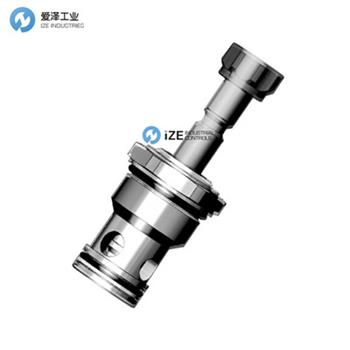

REXROTH OIL CONTROL閥OD.15-X-75-Y-S0技術數據
Technical data | |
General | |
Weight | 0.32 (0.71) kg (lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 80-100 Nm (59-74 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Cavity | CA-16A-2N see RE 18325-75 |
Seal kit–version 1 code/material no. | RG16A2010520100/R901111386 |
Seal kit–version 2-3 code/material no. | RG16A2010530100/R930003262 |
Seal kit coil code/material no. | RG12A1PNBR7010/R934003958 |
Other technical data | See data sheet RE 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See performance graphs % |
Type of protection | See data sheet RE 18325-90 |
Note: Coils must be ordered separately |
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL OD1503753AS000 R901094726
REXROTH OIL CONTROL OD1505753AS000 R901094745
REXROTH OIL CONTROL OD1505753DS000 R901094746
REXROTH OIL CONTROL OD1531753AS000 R901094747
REXROTH OIL CONTROL OD1531753DS000 R901094748
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD.15-X-75-Y-S0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD.15-X-75-Y-S0技術參數
