REXROTH OIL CONTROL閥VEI-8A-12-NC系列技術參數
General | ||
Weight | 0.34 kg (0.75 lbs) | |
Installation orientation | Optional | |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) | |
Hydraulic | ||
Max. operating pressure | 350 bar (5000 psi) | |
Max. proof pressure | 420 bar (6000 psi) | |
Flow range | 5 - 150 l/min (1 - 40 gpm) | |
Fatigue cycle life | 1 million cycles at 350 bar | |
Max. internal leakage | 20 drops/min. | |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) | |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | ||
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) | |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 | |
MTTFd | 150 years see RE 18350-51 except for codes marked with * | |
Special cavity | 021-E see 18325-75 | |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit” or consult factory | |
Seal kit – version 1 | code material no. | RG21E201052010 R934003566 |
Seal kit – version 2-3 | code material no. | RG21E201053010 R934003567 |
Seal kit coil | code material no. | RG12A1PNBR7010 R934003958 |
Other technical data | See data sheet 18350-50 | |
Electrical | ||
Type of voltage | DC voltage | |
Coil type | S8-356 see 18325-90 | |
Supply voltage | See data sheet 18325-90 | |
Nominal voltage | ± 10% | |
Power consumption | 20 W | |
Duty cycle coil | See characteristic curves % | |
Type of protection | See data sheet 18325-90 | |
Note: Coils must be ordered separately | ||
REXROTH OIL CONTROL閥VEI-8A-12-NC系列技術尺寸圖
REXROTH OIL CONTROL閥VEI-8A-12-NC系列選型參考

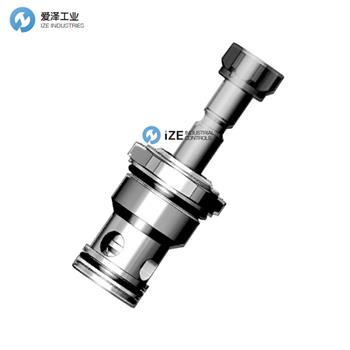

REXROTH OIL CONTROL閥OD1505213AS000 R901104395 VEI-8A-12-NC
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥OD1501213AS000 R901144300
REXROTH OIL CONTROL閥OD1501213AS800 R934000707
REXROTH OIL CONTROL閥OD1501213DS000 R901085462
REXROTH OIL CONTROL閥OD1503213AS000 R901113666
REXROTH OIL CONTROL閥OD1503213AS800 R934003065
REXROTH OIL CONTROL閥OD1503213DS000 R934000792
REXROTH OIL CONTROL閥OD1503213DS800 R934003066
REXROTH OIL CONTROL閥OD1505213AS000 R901104395
REXROTH OIL CONTROL閥OD1505213AS800 R901119221
REXROTH OIL CONTROL閥OD1505213DS000 R901119267
REXROTH OIL CONTROL閥OD1509213AS000 R901132881
REXROTH OIL CONTROL閥OD1511213AS000 R901138183
REXROTH OIL CONTROL閥OD1511213AS800 R934001086
REXROTH OIL CONTROL閥OD1531213AS000 R901104412
REXROTH OIL CONTROL閥OD1531213AS800 R901119002
REXROTH OIL CONTROL閥OD1531213DS000 R901132876
REXROTH OIL CONTROL閥OD1531213DS800 R901125793
