REXROTH OIL CONTROL閥A-VBSO-DE-30-FCB-PI系列技術參數
Max. operating pressure | 410 bar (5945 psi) |
Max. flow | 60 l/min. (16 gpm) |
Weight | see “Dimensions” |
Manifold material | Zinc plated steel |
Flange seal kit 1) | E00000000000014 (R930005947) |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | ﹣30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
MTTFd | 150 years see data sheet 18350-51 |
Other technical data | see data sheet 18350-50 |
Relief setting: at least 1.3 times the highest expected load. | |
Note: for applications outside these parameters, please consult us. | |
1) Seals for 10 valves. | |

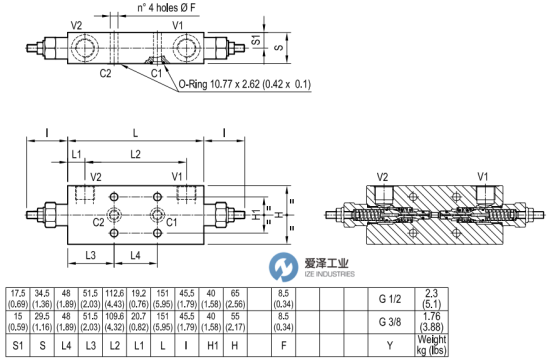

REXROTH OIL CONTROL閥A-VBSO-DE-30-FCB-PI系列技術尺寸圖

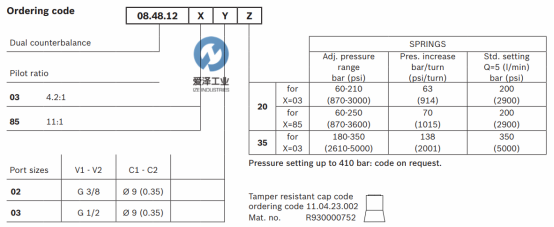

REXROTH OIL CONTROL閥A-VBSO-DE-30-FCB-PI系列選型參考

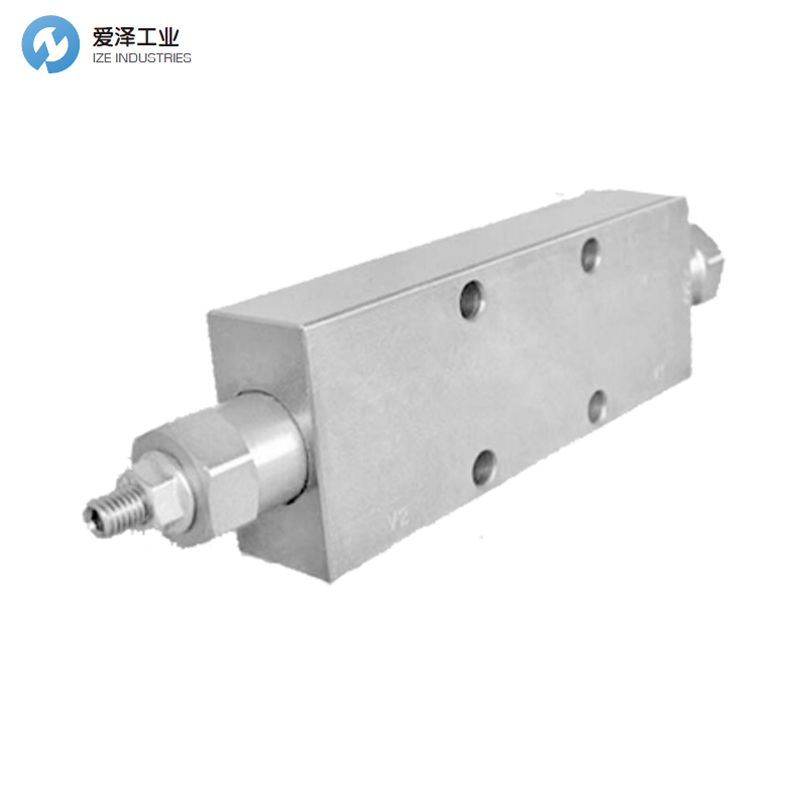

REXROTH OIL CONTROL閥084812030235000 R930006446 A-VBSO-DE-30-FCB-PI
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥084812030220000 R930006792
REXROTH OIL CONTROL閥084812030235000 R930006446
REXROTH OIL CONTROL閥084812030320000 R930006793
REXROTH OIL CONTROL閥084812030335000 R930006447
REXROTH OIL CONTROL閥084812850220000 R930006794
REXROTH OIL CONTROL閥084812850320000 R930006795
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥084812030235000 R930006446的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥084812030235000 R930006446更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
