REXROTH OIL CONTROL閥VEI-8A-06-NC OD.15-X-Y-Z-S系列技術參數
General | |
Weight | 0.16 kg (0.35 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-2N see 18325-70 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit” or consult factory |
Seal kit – version 1 code material no. | RG08A2010520100 R901101437 |
Seal kit – version 2-3 code material no. | RG08A2010530100 R901101544 |
Seal kit coil code material no. | RG12A1PNBR7010 R934003958 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see 18325-90 |
Supply voltage | See data sheet 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

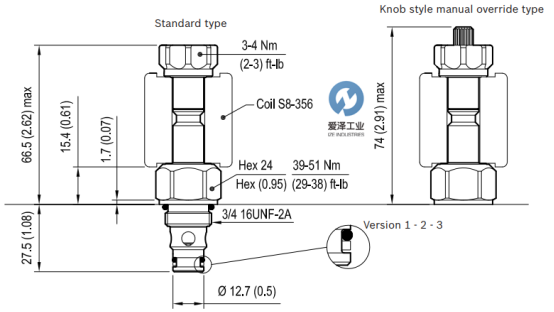

REXROTH OIL CONTROL閥VEI-8A-06-NC OD.15-X-Y-Z-S系列技術尺寸圖

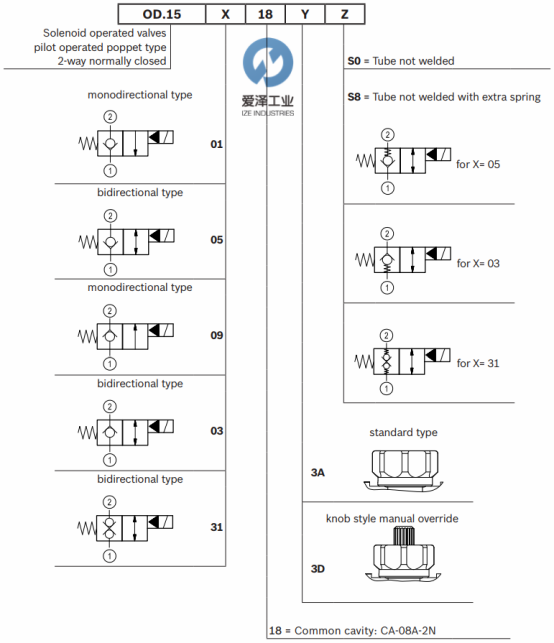

REXROTH OIL CONTROL閥VEI-8A-06-NC OD.15-X-Y-Z-S系列選型參考

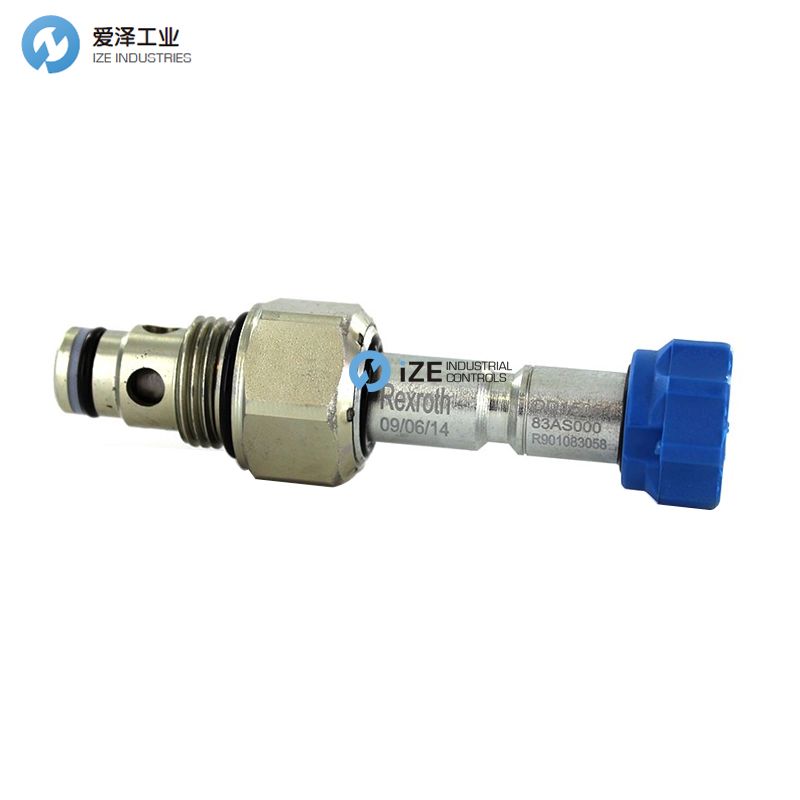

REXROTH OIL CONTROL閥VEI-8A-06-NC OD.15-X-Y-Z-S OD1505183AS000 R901083058
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥OD1501183AS000 R901091096
REXROTH OIL CONTROL閥OD1501183DS000 R901091101
REXROTH OIL CONTROL閥OD1503183AS000 R934000779
REXROTH OIL CONTROL閥OD1503183AS800 R934003063
REXROTH OIL CONTROL閥OD1503183DS000 R901091112
REXROTH OIL CONTROL閥OD1503183DS800 R934003064
REXROTH OIL CONTROL閥OD1505183AS000 R901083058
REXROTH OIL CONTROL閥OD1505183AS800 R934003080
REXROTH OIL CONTROL閥OD1505183DS000 R901087979
REXROTH OIL CONTROL閥OD1509183AS000 R901091150
REXROTH OIL CONTROL閥OD1509183DS000 R901091151
REXROTH OIL CONTROL閥OD1531183AS000 R901082015
REXROTH OIL CONTROL閥OD1531183AS800 R934000104
REXROTH OIL CONTROL閥OD1531183DS000 R901091164
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1505183AS000 R901083058的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥OD1505183AS000 R901083058更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD1505183AS000 R901083058 VEI-8A-06-NC OD.15-X-Y-Z-S系列技術參數介紹
