REXROTH OIL CONTROL閥VEI-16-08A-NC OD.15-X-18-Y-Z系列技術參數
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 01.05.07 |
Switching time | Closing≤50ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-2N see 18325-70 |
Seal kit for X=01.05.07 code material no. | RG08A2010520100 R901101437 |
Seal kit for X=31.03.09 code material no. | RG08A2010530100 R901101544 |
Seal kit coil code material no. | RG02Z0010000100 R930058940 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

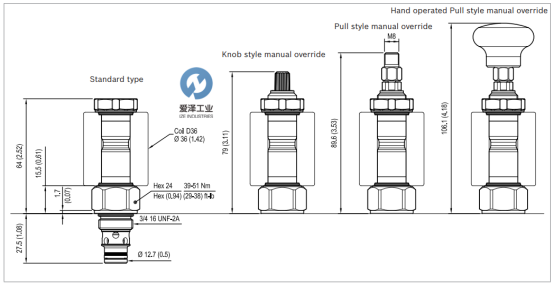

REXROTH OIL CONTROL閥VEI-16-08A-NC OD.15-X-18-Y-Z系列技術尺寸圖

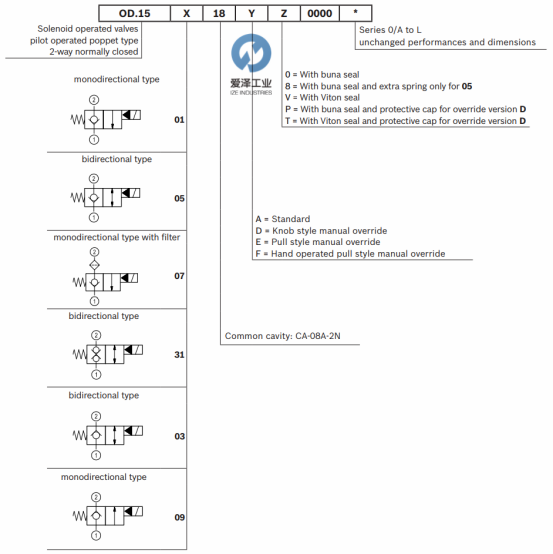

REXROTH OIL CONTROL閥VEI-16-08A-NC OD.15-X-18-Y-Z系列選型參考

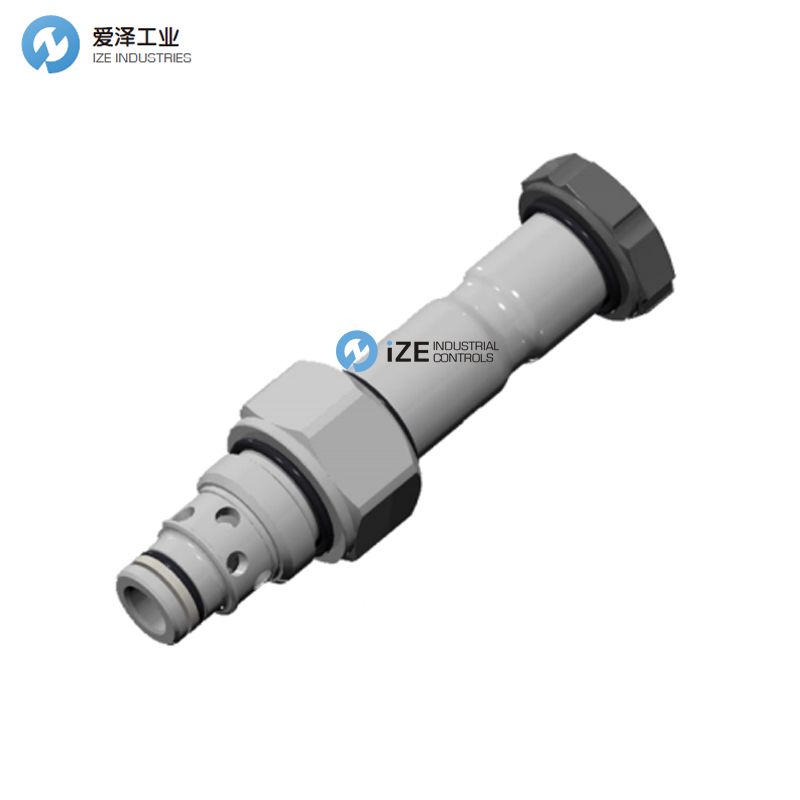

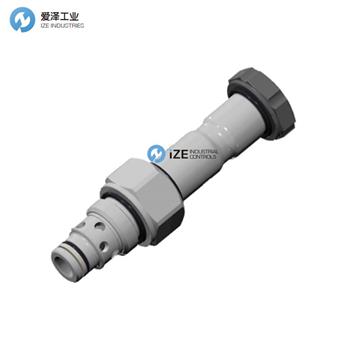

REXROTH OIL CONTROL閥VEI-16-08A-NC OD.15-X-18-Y-Z OD150518A000000 R930058427
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥OD150118A000000 R930058697
REXROTH OIL CONTROL閥OD150118D000000 R930059941
REXROTH OIL CONTROL閥OD150518A000000 R930058427
REXROTH OIL CONTROL閥OD150518D000000 R930058344
REXROTH OIL CONTROL閥OD150518DP00000 R930059757
REXROTH OIL CONTROL閥OD150718A000000 R930058338
REXROTH OIL CONTROL閥OD150718D000000 R930058336
REXROTH OIL CONTROL閥OD150718DP00000 R930058529
REXROTH OIL CONTROL閥OD150118E000000 R930060958
REXROTH OIL CONTROL閥OD150518E000000 R930060966
REXROTH OIL CONTROL閥OD150718E000000 R930060973
REXROTH OIL CONTROL閥OD153118A000000 R930058334
REXROTH OIL CONTROL閥OD153118D000000 R930058898
REXROTH OIL CONTROL閥OD153118E000000 R930065030
REXROTH OIL CONTROL閥OD150518A800000 R930063229
REXROTH OIL CONTROL閥OD150318A000000 R930062828
REXROTH OIL CONTROL閥OD150918A000000 R930064361
REXROTH OIL CONTROL閥OD153118DP00000 R930066685
REXROTH OIL CONTROL閥OD150518D800000 R930063959
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150518A000000 R930058427的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥OD150518A000000 R930058427更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
