REXROTH OIL CONTROL閥VEI-8A-16A-NCOD.15-X-75-Y-S0系列技術參數
General | |
Weight kg (lbs) | 0.32 (0.71) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. proof pressure bar (psi) | 420 (6000) |
Flow range | 5-150 (1-40) |
Fatigue cycle life cycles | 1 million cycles at 350 bar |
Max. internal leakage | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 80-100 (59-74) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Cavity | CA-16A-2N see RE 18325-75 |
Seal kit - version 1 code material no. | RG16A2010520100 R901111386 |
Seal kit - version 2-3 code material no. | RG16A2010530100 R930003262 |
Seal kit coil code material no. | RG12A1PNBR7010 R934003958 |
Other technical data | See data sheet RE 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 |
Duty cycle coil | See performance graphs |
Type of protection | See data sheet RE 18325-90 |
Note: Coils must be ordered separately | |
REXROTH OIL CONTROL閥VEI-8A-16A-NC OD.15-X-75-Y-S0系列選型介紹

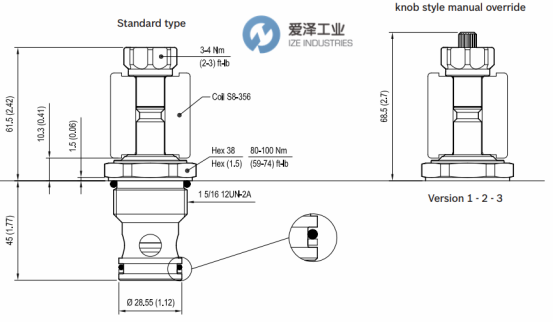

REXROTH OIL CONTROL閥VEI-8A-16A-NC OD.15-X-75-Y-S0系列技術尺寸圖

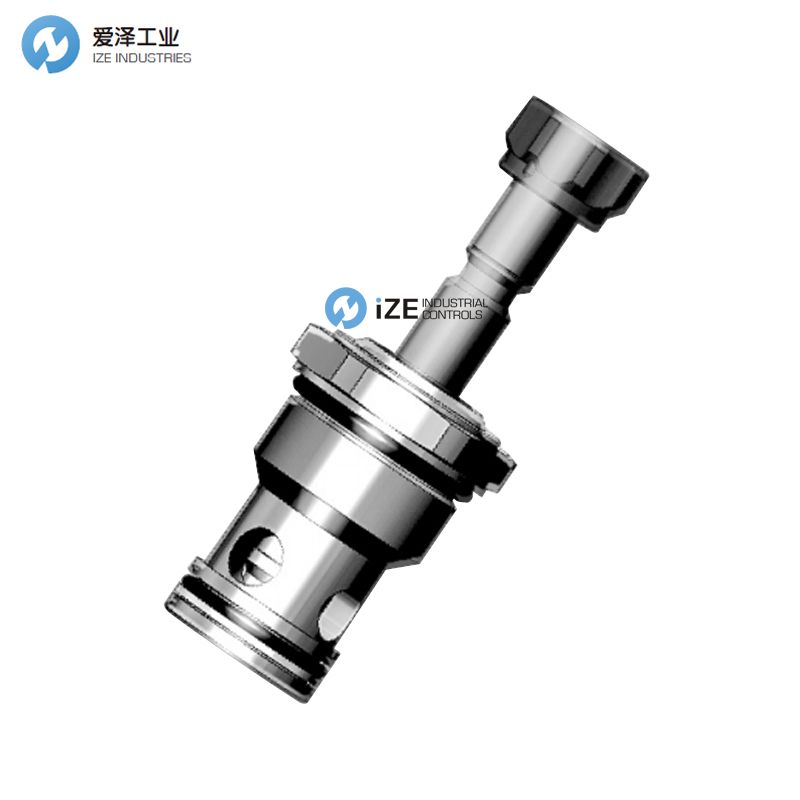

REXROTH OIL CONTROL閥OD1505753AS000 R901094745 VEI-8A-16A-NC OD.15-X-75-Y-S0
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥OD1503753AS000 R901094726
REXROTH OIL CONTROL閥OD1505753AS000 R901094745
REXROTH OIL CONTROL閥OD1505753DS000 R901094746
REXROTH OIL CONTROL閥OD1531753AS000 R901094747
REXROTH OIL CONTROL閥OD1531753DS000 R901094748
REXROTH OIL CONTROL閥OD.15.03.75.3A.S000
REXROTH OIL CONTROL閥OD.15.05.75.3A.S000
REXROTH OIL CONTROL閥OD.15.05.75.3D.S000
REXROTH OIL CONTROL閥OD.15.31.75.3A.S000
REXROTH OIL CONTROL閥OD.15.31.75.3D.S000
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1505753AS000 R901094745的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥OD1505753AS000 R901094745更詳細的信息或者購買意大利REXROTHOILCONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD1505753AS000 R901094745 VEI-8A-16A-NC OD.15-X-75-Y-S0系列技術參數
