REXROTH閥VEI-16-16A-NC系列技術參數
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage: | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
Common cavity | CA-16A-2N see 18325-70 |
Seal kit for X=03,05 | code RG12A2010520100 |
Seal kit for X=31 | code RG12A2010530100 |
Seal kit coil and standard cap | code RG01Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

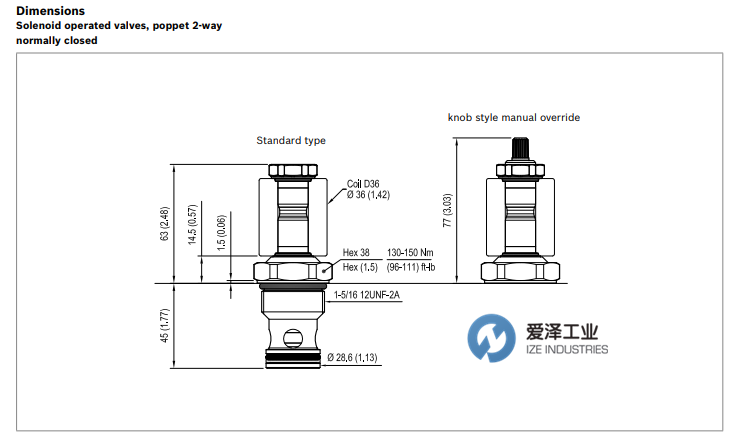

REXROTH閥VEI-16-16A-NC系列技術尺寸

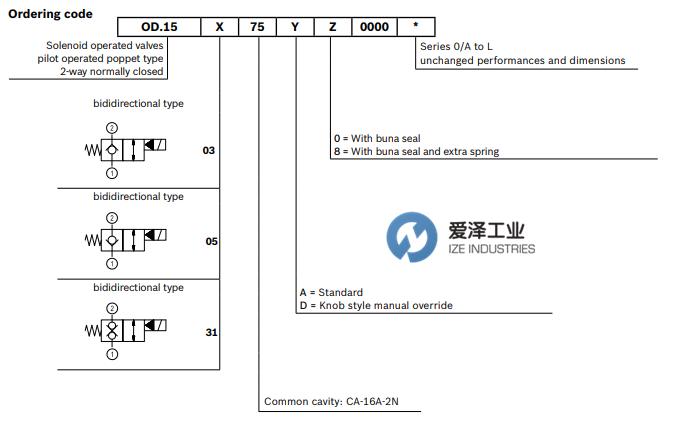

REXROTH閥VEI-16-16A-NC系列選型
REXROTH閥VEI-16-16A-NC系列其他常用型號：
REXROTH OD150375A000000 R930070263
REXROTH OD150575A000000 R930069969
REXROTH OD150575D000000 R930070067
REXROTH OD153175A000000 R930069968
REXROTH OD153175D000000 R930070358
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OD153175A000000 R930069968的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH閥OD153175A000000 R930069968技術參數及選型
