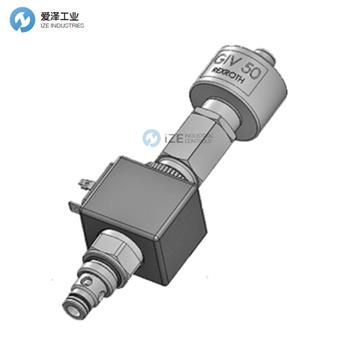

REXROTH閥VESP-08A-12A/00-2A05-N7系列技術參數
Technical data | |
General | |
Weight | 0.13 kg (0.29 lbs) |
Installation orientation | Optional |
Ambient temperature range | -25 to 60 °C (-13 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 1 - 40 l/min (0.3 - 11 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 15 to 380 mm2/s (cSt) | |
Installation torque | 30 - 35 Nm (22 - 26 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Common cavity | CA-08A-2N see 18325-70 |
Seal kit | code RG08A2010520100 |
Electrical | |
Type of voltage | DC voltage |
Nominal voltage | 土10% |
Power consumption | 20 W |

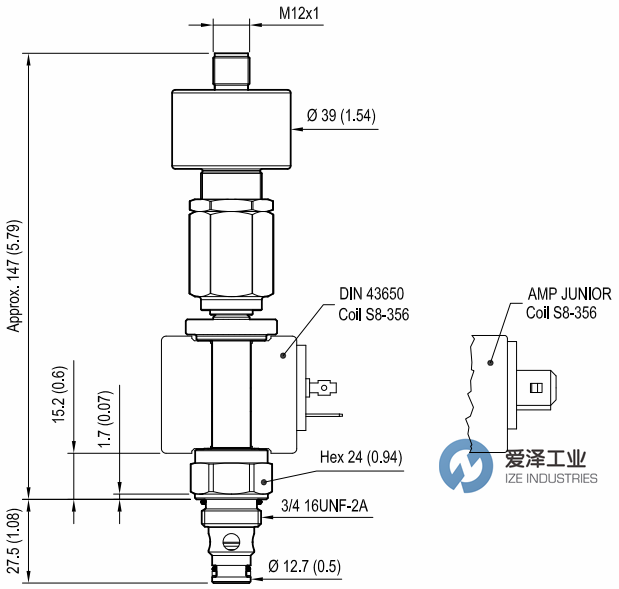

REXROTH閥VESP-08A-12A/00-2A05-N7系列技術尺寸
REXROTH閥VESP-08A-12A/00-2A05-N7系列選型
REXROTH閥VESP-08A-12A/00-2A05-N7系列其他常用型號：
REXROTH OD1505184105OC R934004319
REXROTH OD1505184185OC R934004320
REXROTH OD1505184106OC R934004812
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OD1505184105OC R934004319的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH閥OD1505184105OC R934004319技術參數及選型
