REXROTH閥VSA1.050系列技術參數
Technical data | |
Max. operating pressure bar (psi) | 380 (5500) |
Max. flow l/min. (gpm) | 50 (13) |
Max. internal leakage (at 80% of pressure setting) drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 45-50 (33-37) |
Weight kg (lbs) | 0.07 (0.15) |
Special cavity | 730-A |
Seal kit | code RG730A020520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) ISO 4406 20/18/15 |
Installation | No restrictions |

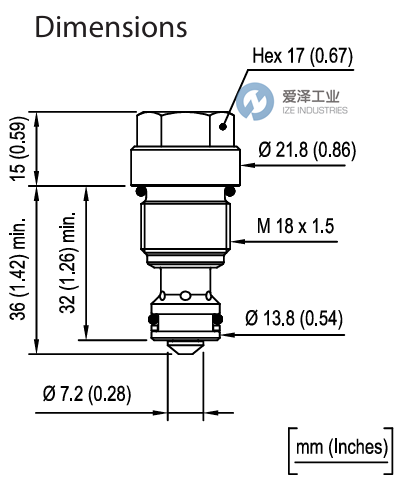

REXROTH閥VSA1.050系列技術尺寸

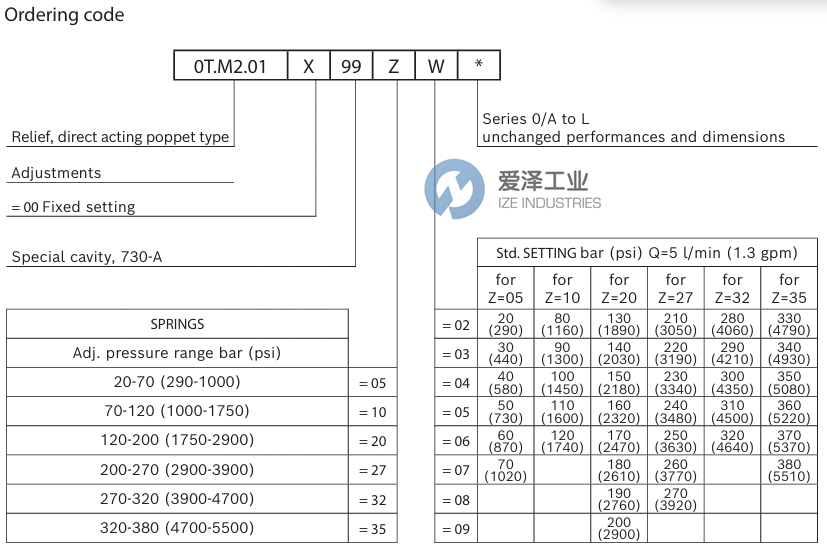

REXROTH閥VSA1.050系列選型
REXROTH閥VSA1.050系列其他常用型號：
REXROTH 0TM201009905020 R931002361
REXROTH 0TM201009905030 R931002362
REXROTH 0TM201009905040 R931002363
REXROTH 0TM201009905050 R931002364
REXROTH 0TM201009905060 R931002365
REXROTH 0TM201009905070 R931002366
REXROTH 0TM201009910020 R931002367
REXROTH 0TM201009910030 R931002369
REXROTH 0TM201009910040 R931002370
REXROTH 0TM201009910050 R931002371
REXROTH 0TM201009910060 R931002372
REXROTH 0TM201009920020 R931002373
REXROTH 0TM201009920030 R931002374
REXROTH 0TM201009920040 R931000034
REXROTH 0TM201009920050 R931002375
REXROTH 0TM201009920060 R931002376
REXROTH 0TM201009920070 R931002377
REXROTH 0TM201009920080 R931002378
REXROTH 0TM201009920090 R901170599
REXROTH 0TM201009927020 R931002380
REXROTH 0TM201009927030 R931002381
REXROTH 0TM201009927040 R931002382
REXROTH 0TM201009927050 R931002383
REXROTH 0TM201009927060 R931002384
REXROTH 0TM201009927070 R931002385
REXROTH 0TM201009927080 R931002386
REXROTH 0TM201009932020 R931002387
REXROTH 0TM201009932030 R931002388
REXROTH 0TM201009932040 R931002389
REXROTH 0TM201009932050 R931002390
REXROTH 0TM201009932060 R931002391
REXROTH 0TM201009935020 R931002392
REXROTH 0TM201009935030 R931002394
REXROTH 0TM201009935040 R931002395
REXROTH 0TM201009935050 R931002396
REXROTH 0TM201009935060 R931002397
REXROTH 0TM201009935070 R931002398
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥0TM201009920070 R931002377的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH閥0TM201009920070 R931002377技術參數及選型
