REXROTH閥 VED-16-08A-42技術參數
Technical data | |
General | |
Weight | 0.14 kg (0.31 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | up to 280 bar (4060 psi) * |
Max. flow | up to 20 l/min (5 gpm) |
Max. internal leakage at 230 bar | 40 cm3/min. (2.4 cu.in/min.) |
Fatigue cycle life | 1 million cycles at 250 bar |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 34 - 39 Nm (25 - 29 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit | code RG08A4010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Admitted voltage tolerance: | -10% / +25% of nominal voltage at 60°C amb. T |
Power consumption | 20 W |

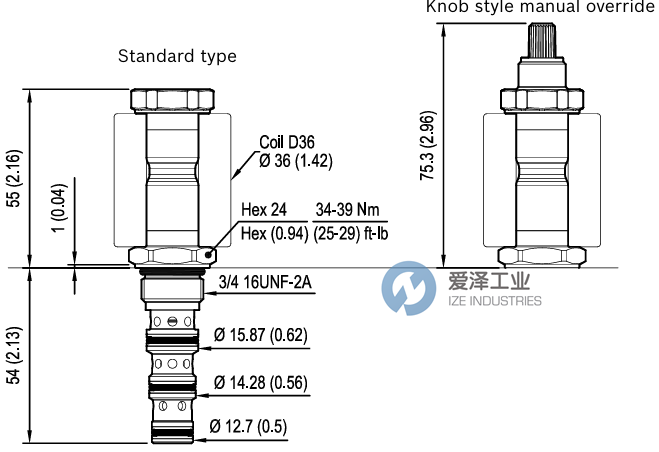

REXROTH閥 VED-16-08A-42技術尺寸

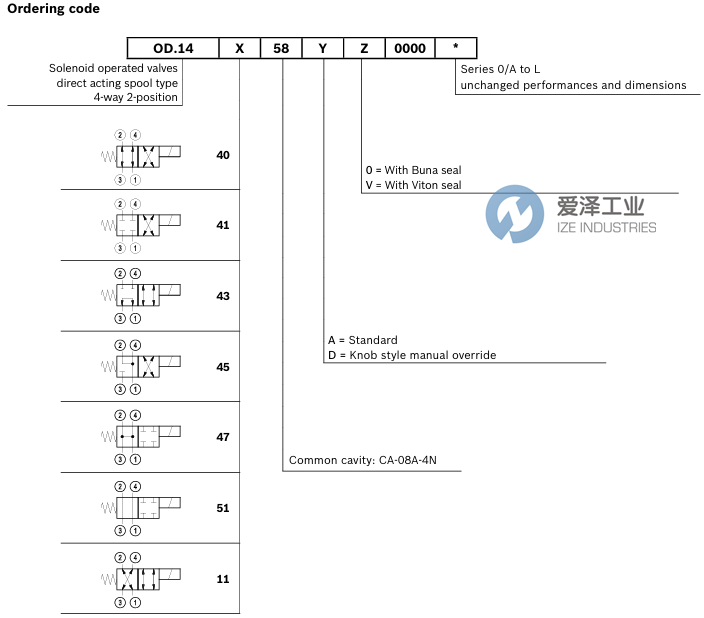

REXROTH閥 VED-16-08A-42系列選型
REXROTH閥 VED-16-08A-42系列其他常用型號：
REXROTH OD144058A000000 R930058339
REXROTH OD144058D000000 R930058713
REXROTH OD144158A000000 R930058701
REXROTH OD144158D000000 R930058711
REXROTH OD144358A000000 R930058699
REXROTH OD144358D000000 R930058714
REXROTH OD144558A000000 R930058700
REXROTH OD144558D000000 R930058712
REXROTH OD144758A000000 R930058698
REXROTH OD144758D000000 R930058715
REXROTH OD145158A000000 R930071561
REXROTH OD141158A000000 R930067156
