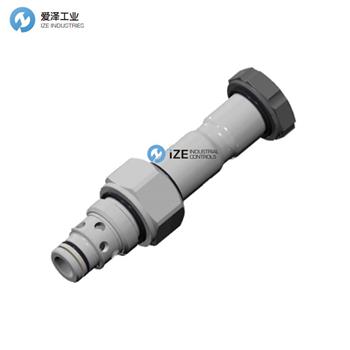

REXROTH閥VEI-16-08A-NC系列技術參數
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90°C (-22 to 194°F) for W=0000 |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min. (0.1 - 11 gpm) for W=0000 |
Fatigue cycle life | 2 million cycles at 350 bar |
150000 cycles at 420 bar | |
Max. internal leakage: | 5 drops/min. for X= 01,05,07 |
20 drops/min. for X= 31,03,09 | |
Switching time for W=0000 | Opening ≤ 50 ms |
Switching time for W=000T | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm(NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,05 | code RG08A2010520100 |
Seal kit for X=03,09,11,31 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

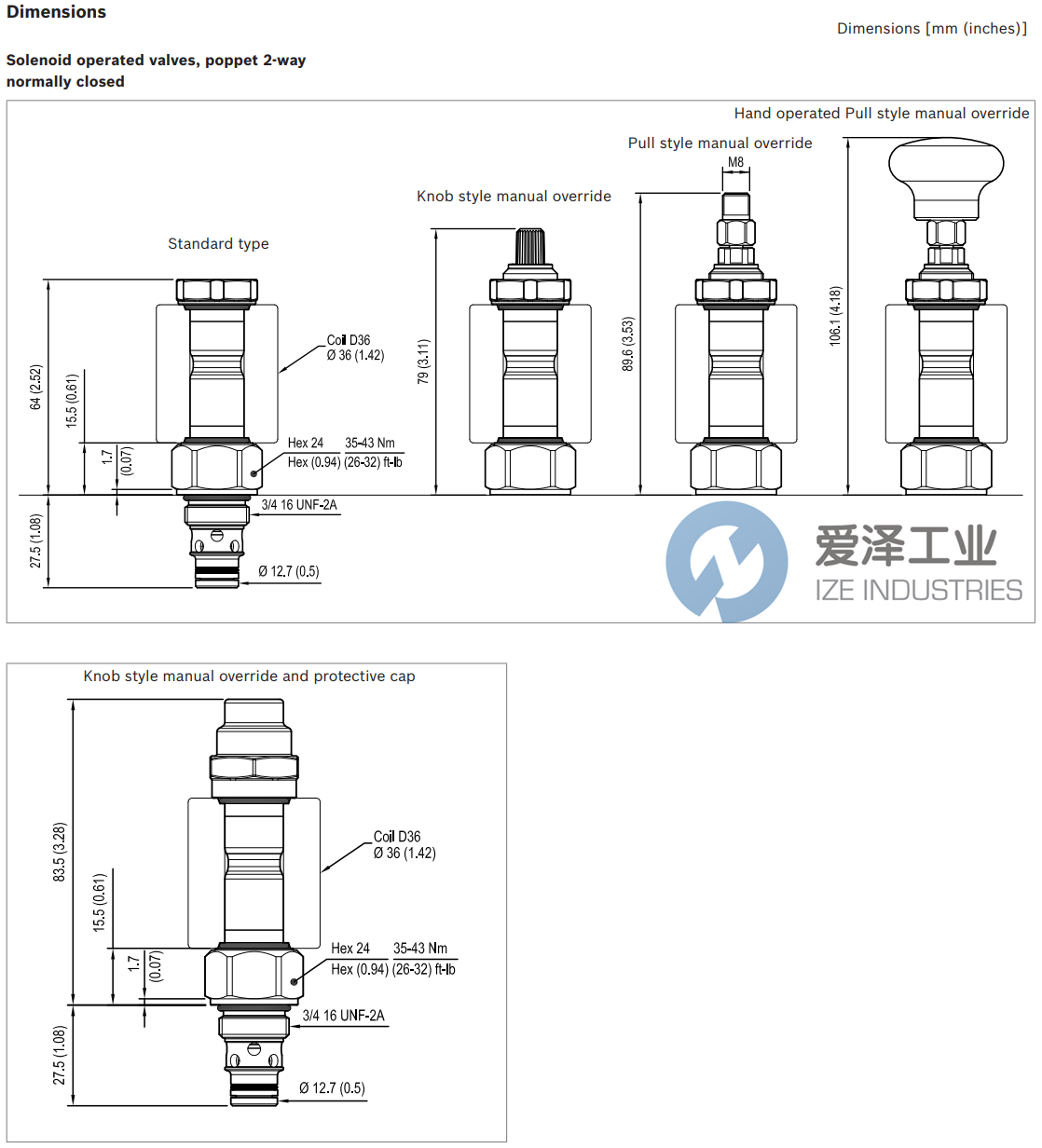

REXROTH閥VEI-16-08A-NC系列技術尺寸圖

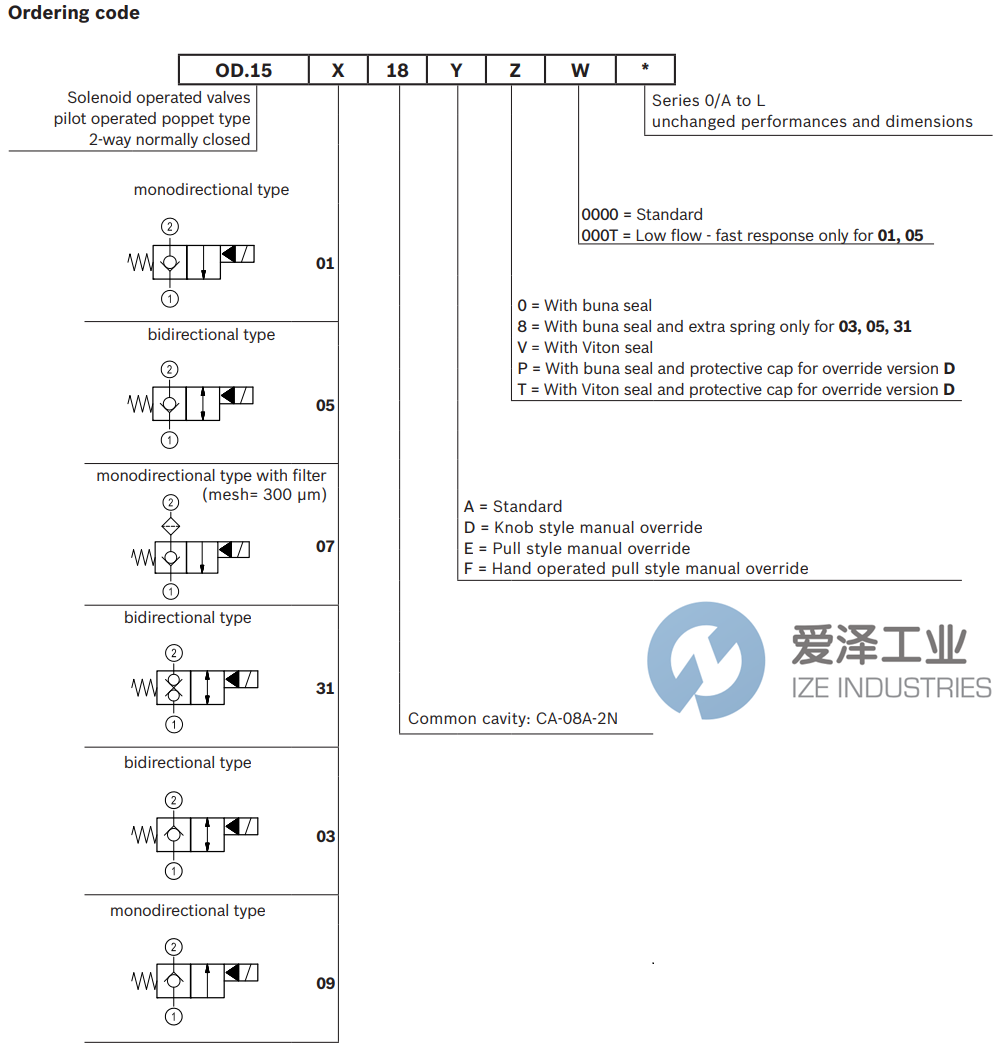

REXROTH閥VEI-16-08A-NC系列選型
REXROTH閥VEI-16-08A-NC系列其他常用型號：
REXROTH OD150118A000000 R930058697
REXROTH OD150118D000000 R930059941
REXROTH OD150518A000000 R930058427
REXROTH OD150518D000000 R930058344
REXROTH OD150518DP00000 R930059757
REXROTH OD150718A000000 R930058338
REXROTH OD150718D000000 R930058336
REXROTH OD150718DP00000 R930058529
REXROTH OD150118E000000 R930060958
REXROTH OD150518E000000 R930060966
REXROTH OD150718E000000 R930060973
REXROTH OD153118A000000 R930058334
REXROTH OD153118D000000 R930058898
REXROTH OD153118E000000 R930065030
REXROTH OD150518A800000 R930063229
REXROTH OD150318A000000 R930062828
REXROTH OD150918A000000 R930064361
REXROTH OD153118DP00000 R930066685
REXROTH OD150518D800000 R930063959
REXROTH OD150318D000000 R930065238
REXROTH OD150918D000000 R930066189
REXROTH OD150318A800000 R930065856
REXROTH OD150518A800000 R930063229
REXROTH OD153118A800000 R930066547
REXROTH OD153118D800000 R930065327
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OD150118A000000 R930058697的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH閥OD150118A000000 R930058697技術參數及選型
