REXROTH閥VEI-16-NC系列技術參數
Technical data | |
General | |
Weight | 0.25 kg (0.55 Ibs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | 350 bar (5000 psi) |
Max. operating pressure | 2 - 70 /min (0.53- 18 gpm) |
Flow range | 2 million cycles at 350 bar |
Fatigue cycle life | 5 drops/min. for X=01 ,05,11 |
Max. internal leakage | 54-66Nm(40-49ft-lbs) |
Installation torque | Opening≤50 ms |
Switching time | Closing≤100 ms |
Fluid temperature range | -20to80°C(-4to176°F) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,05,11 | code RG17E201052010 |
Seal kit for X=03,31 | code RG17E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

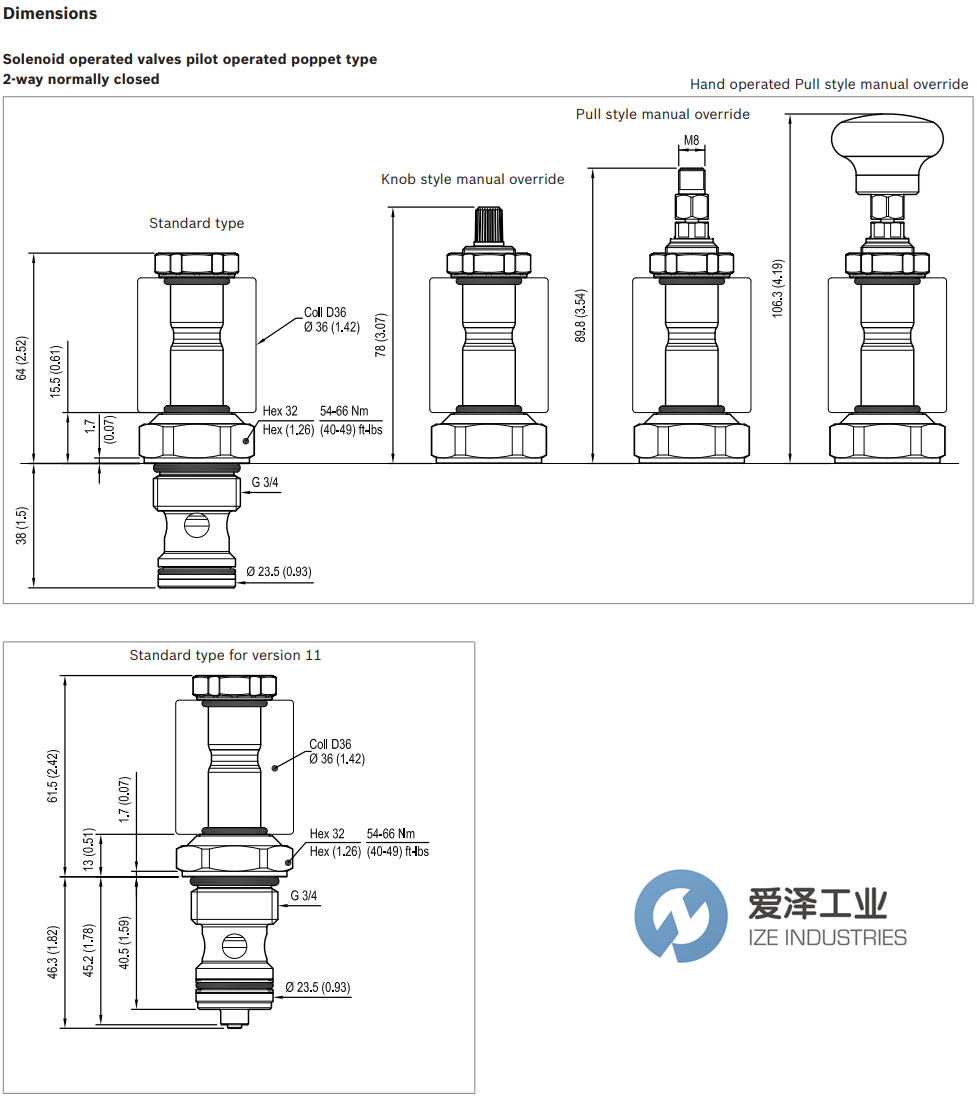

REXROTH閥VEI-16-NC系列技術尺寸

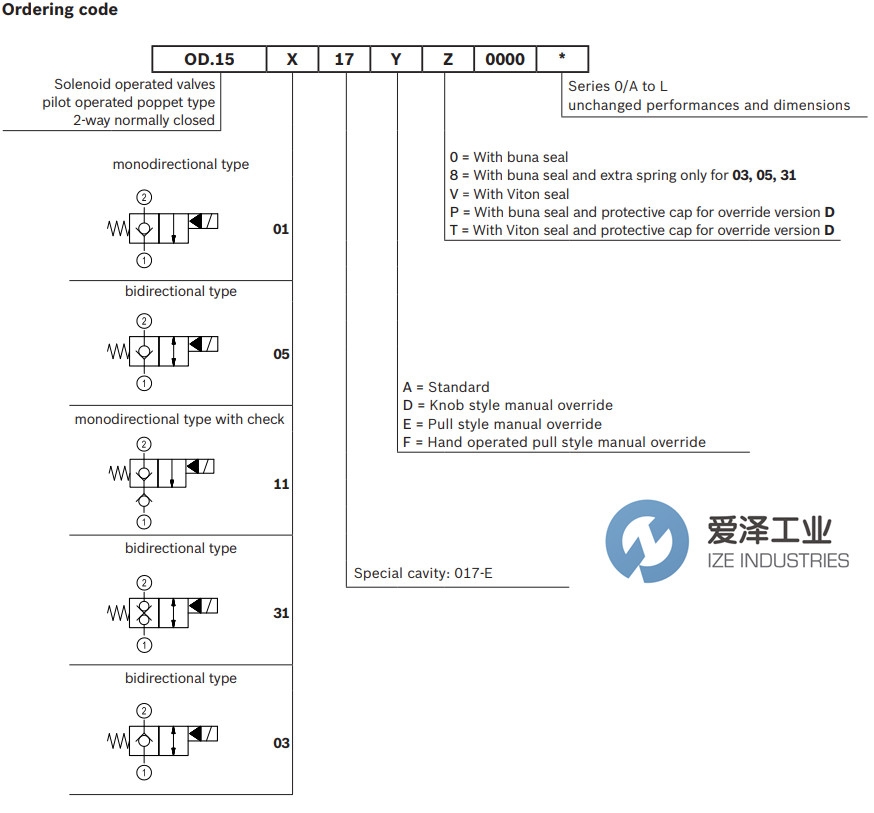

REXROTH閥VEI-16-NC系列選型
REXROTH閥VEI-16-NC系列其他常用型號：
REXROTH OD150117A000000 R930062337
REXROTH OD150117D000000 R930065472
REXROTH OD150517A000000 R930062338
REXROTH OD150517D000000 R930064099
REXROTH OD151117A000000 R930064362
REXROTH OD150517DP00000 R930066439
REXROTH OD153117A000000 R930065028
REXROTH OD153117D000000 R930067162
REXROTH OD150317A000000 R930066965
REXROTH OD150317D000000 R930066967
REXROTH OD150517A800000 R930065551
REXROTH OD150317A800000 R930065610
REXROTH OD150517E000000 R930070202
REXROTH OD153117A800000 R930066700
REXROTH OD153117D800000 R930067588
REXROTH OD153117AV00000 R930071824
REXROTH VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OD153117AV00000 R930071824的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH閥OD153117AV00000 R930071824技術參數及選型
