REXROTH OIL CONTROL閥VEI-16-08F-NC系列技術參數
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 01,05 |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Special cavity | 039-E |
Seal kit for X=01,05 | code RG39E201052010 |
Seal kit coil and standard cap | code RG01Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

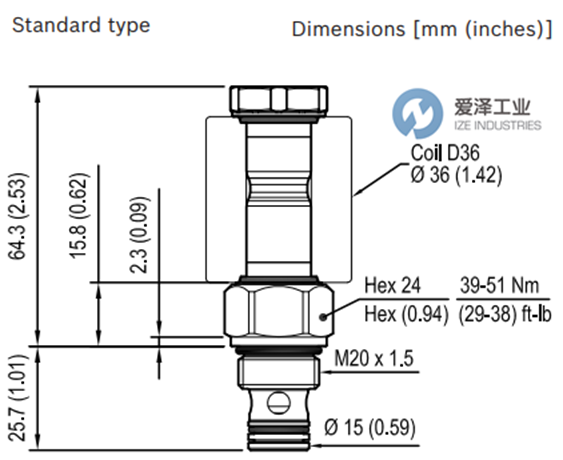

REXROTH OIL CONTROL閥VEI-16-08F-NC系列技術尺寸

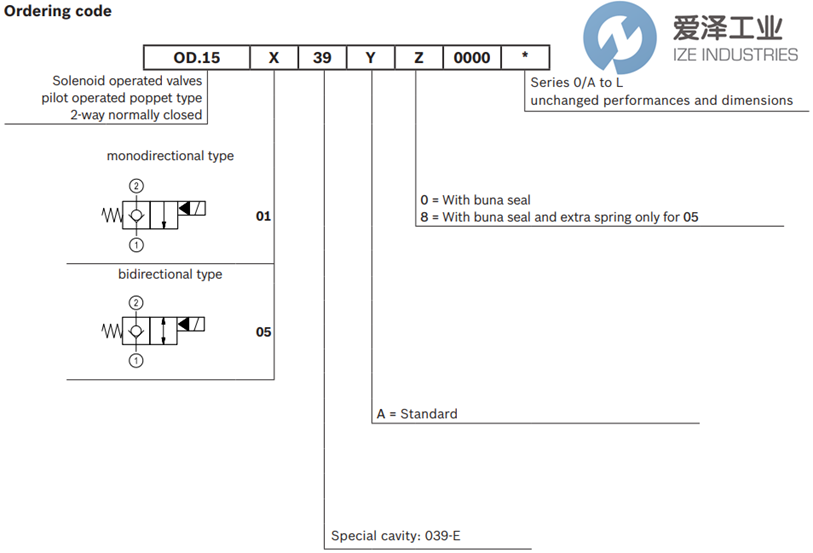

REXROTH OIL CONTROL閥VEI-16-08F-NC系列選型
REXROTH OIL CONTROL閥VEI-16-08F-NC系列其他常用型號：
REXROTH OIL CONTROL OD150139A000000 R930058432
REXROTH OIL CONTROL OD150139A800000 R930064451
REXROTH OIL CONTROL OD150539A000000 R930058436
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
