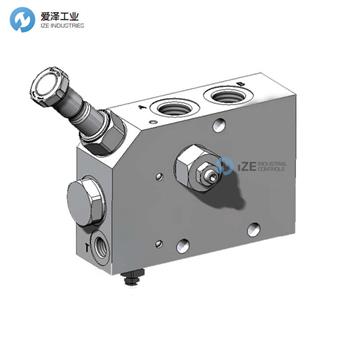

REXROTH OIL CONTROL閥A-VRFC3C-VEI-VS系列技術參數
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. priority line pressure: | limited by relief valve |
Back pressure at T port | max. 1.5 bar (20 psi) |
Drain from T, with solenoid valve non-energized | up to 1.5 l/min. (0.4 gpm) |
Manifold material | Zinc plated steel |
Fluid | Mineral oil (HL, HLP) according to DIN 51524 |
Fluid temperature range | -20 °C to 80 (-4 to 176 °F) |
Viscosity range | 20 to 380 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |

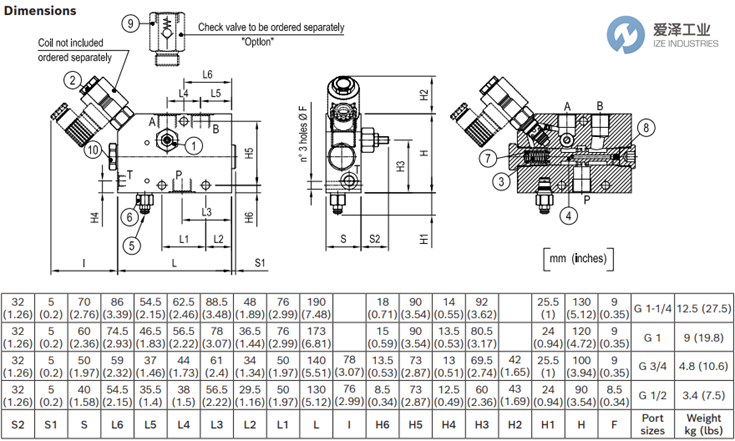

REXROTH OIL CONTROL閥A-VRFC3C-VEI-VS系列技術尺寸

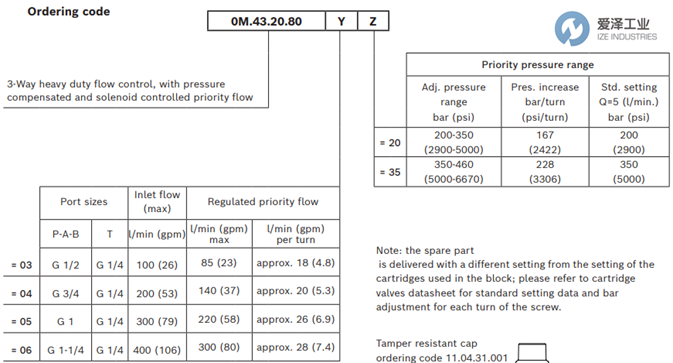

REXROTH OIL CONTROL閥A-VRFC3C-VEI-VS系列選型
REXROTH OIL CONTROL閥A-VRFC3C-VEI-VS系列其他常用型號：
REXROTH OIL CONTROL 0M432080032000D R930067636
REXROTH OIL CONTROL 0M432080033500D R930067646
REXROTH OIL CONTROL 0M432080042000E R930067629
REXROTH OIL CONTROL 0M432080043500A R930067635
REXROTH OIL CONTROL 0M432080052000E R930069295
REXROTH OIL CONTROL 0M432080053500B R930069296
REXROTH OIL CONTROL 0M432080062000E R930069297
REXROTH OIL CONTROL 0M432080063500A R930069298
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥0M432080053500B R930069296的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥0M432080053500B R930069296技術參數及選型
