REXROTH OIL CONTROL閥VUCN-08A系列技術參數
Technical data | |
Max. operating pressure bar (psi) | 420 (6000) |
Max. flow l/min. (gpm) | 50 (13) |
Max. internal leakage drops/min. | 5 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 34-41 (25-30) |
Weight kg (lbs) | 0.12 (0.27) |
Cavity | CA-08A-2N |
Seal kit (*) | code RG08A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet RE 18350-50 |

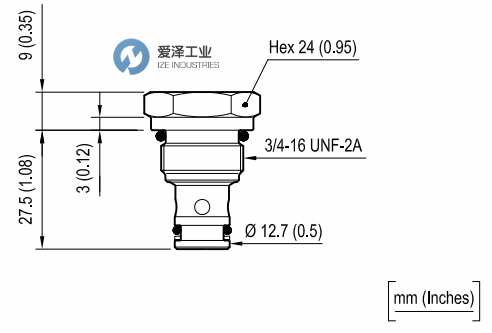

REXROTH OIL CONTROL閥VUCN-08A系列尺寸圖

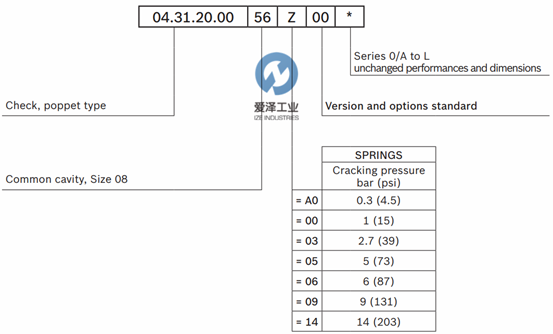

REXROTH OIL CONTROL閥VUCN-08A系列選型
REXROTH OIL CONTROL閥VUCN-08A系列其他常用型號：
REXROTH OIL CONTROL 0431200056A0000 R930006992
REXROTH OIL CONTROL 043120005600000 R901007308
REXROTH OIL CONTROL 043120005603000 R901162183
REXROTH OIL CONTROL 043120005605000 R901106550
REXROTH OIL CONTROL 043120005606000 R901116571
REXROTH OIL CONTROL 043120005609000 R930000961
REXROTH OIL CONTROL 043120005614000 R901106592
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥043120005605000 R901106550的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥043120005605000 R901106550規格描述
