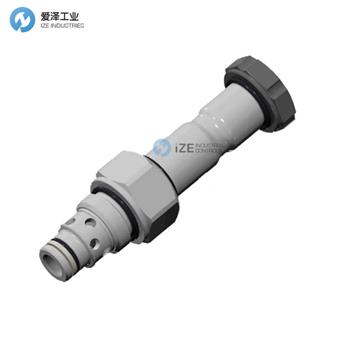

REXROTH OIL CONTROL閥VEI-16-10A-NC系列技術參數
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 2 - 70 l/min (0.53 - 18 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage | 5 drops/min. for X=05 |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 44 - 56 Nm (33 - 41 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=05 | code RG10A2010520100 |
Seal kit for X=03, 31 | code RG10A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

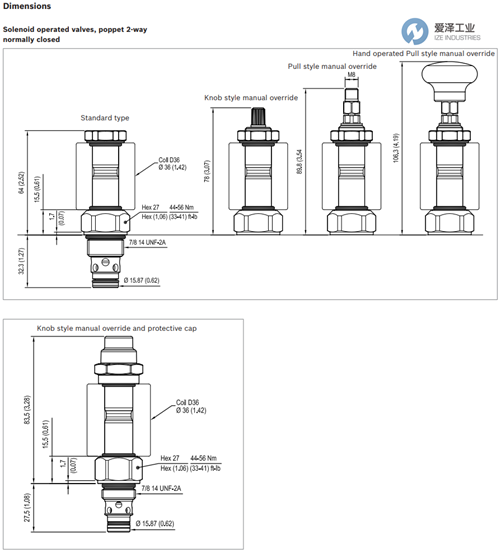

REXROTH OIL CONTROL閥VEI-16-10A-NC系列技術尺寸

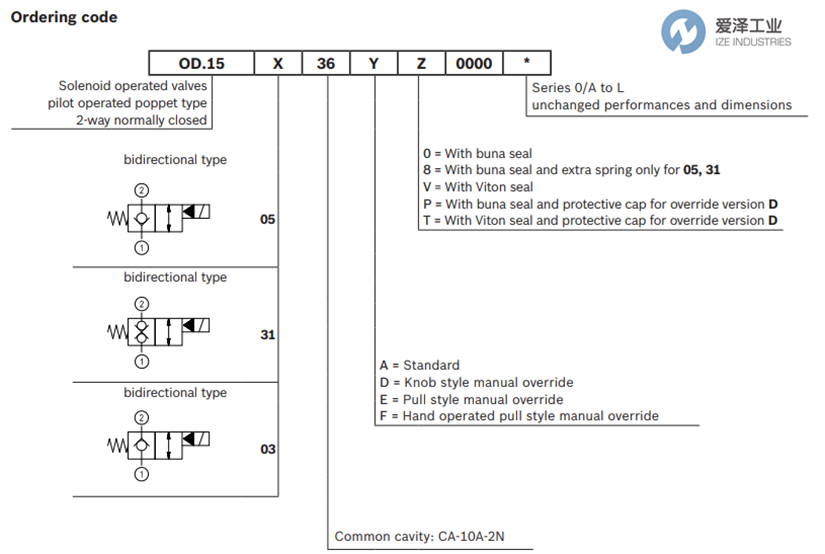

REXROTH OIL CONTROL閥VEI-16-10A-NC系列選型
REXROTH OIL CONTROL閥VEI-16-10A-NC系列其他常用型號：
REXROTH OIL CONTROL OD150536A000000 R930063002
REXROTH OIL CONTROL OD150536D000000 R930062969
REXROTH OIL CONTROL OD150536E000000 R930062947
REXROTH OIL CONTROL OD150536F000000 R930062967
REXROTH OIL CONTROL OD150536DP00000 R930062946
REXROTH OIL CONTROL OD153136A000000 R930065511
REXROTH OIL CONTROL OD153136D000000 R930066658
REXROTH OIL CONTROL OD150336A000000 R930065691
REXROTH OIL CONTROL OD150536A800000 R930065844
REXROTH OIL CONTROL OD153136A800000 R930067585
REXROTH OIL CONTROL OD153136D800000 R930068786
REXROTH OIL CONTROL OD150336D000000 R930071617
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
