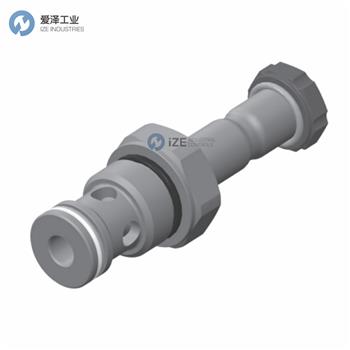

REXROTH OIL CONTROL閥VEI-16-NA系列技術參數
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 2 - 70 l/min (0.53 - 18 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage | 5 drops/min. for X=02,06,12 |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X= 02,06,12 | code RG17E201052010 |
Seal kit for X= 04,32 | code RG17E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective | code RG04Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

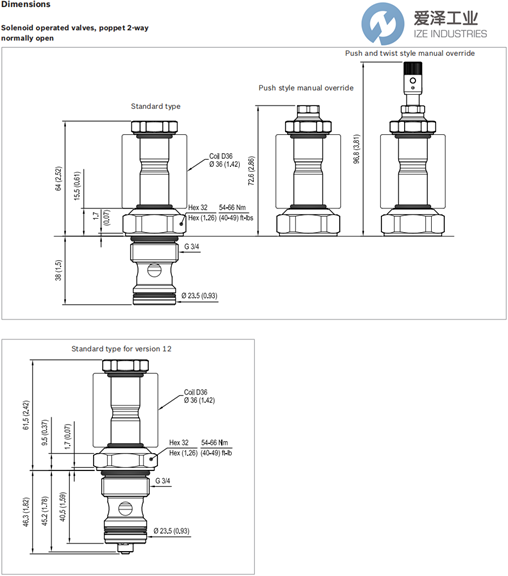

REXROTH OIL CONTROL閥VEI-16-NA系列技術尺寸

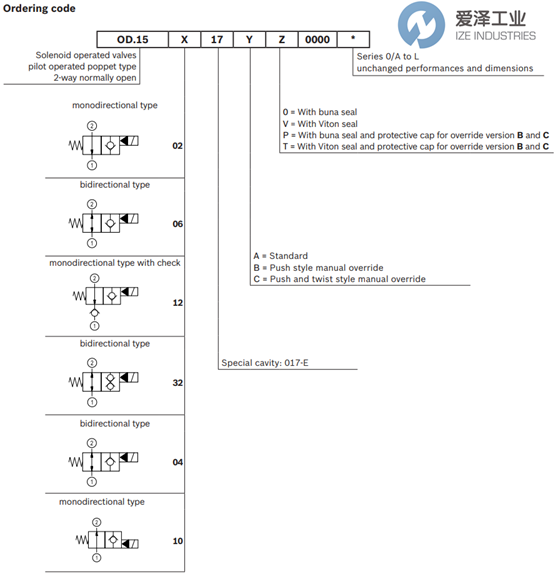

REXROTH OIL CONTROL閥VEI-16-NA系列選型
REXROTH OIL CONTROL閥VEI-16-NA系列其他常用型號：
REXROTH OIL CONTROL OD150217A000000 R930063870
REXROTH OIL CONTROL OD150217C000000 R930065471
REXROTH OIL CONTROL OD150617A000000 R930064265
REXROTH OIL CONTROL OD150617B000000 R930064334
REXROTH OIL CONTROL OD150617C000000 R930063423
REXROTH OIL CONTROL OD151217A000000 R930063907
REXROTH OIL CONTROL OD153217A000000 R930064102
REXROTH OIL CONTROL OD153217B000000 R930067161
REXROTH OIL CONTROL OD153217BP00000 R930067159
REXROTH OIL CONTROL OD153217C000000 R930067160
REXROTH OIL CONTROL OD153217CP00000 R930067157
REXROTH OIL CONTROL OD150417A000000 R930066966
REXROTH OIL CONTROL OD151017A000000 R930076206
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD153217C000000 R930067160的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD153217C000000 R930067160技術參數及選型
